HS-EX6600-038 Nitrogen Gas Spring, 6630daN Force

SKU
HSEX6600-038
More Information
Body Dia. (mm) 120
Piston Dia. (mm) 75
Stroke (mm) 38
L Min (mm) 118
Full Length (mm) 156
Mounting Options End Support, Front Flange, Square Flange, Square Front Flange
Charge Port G1/8
Tapped Hole Depth (mm) 15
Initial Force (N) 66300
Certification PED 2014/68/EU
No documents available, please contact us.

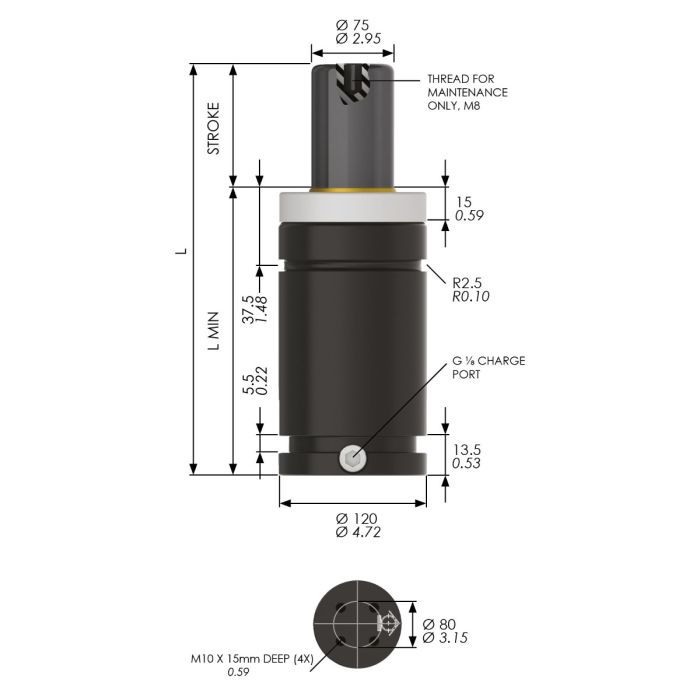

main product photo

Product Enquiry

Customer Information
Back
The HS-EX6600-038 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 9820daN and a weight of 6.63kg
  • Product code
    Product Description
    Stock Status
  • HSEX6600-038
    HS-EX6600-038 Nitrogen Gas Spring, 6630daN Force
CAD Files

Missing CAD File Request Form

Let us know which CAD file you need by filling in the form below. Add your own details so we can let you know when it's available for download.
