Nitrogen Gas Spring - ISNG7500-300

  • SPECIFICATIONS
  • MOUNTING OPTIONS
  • MAINTENANCE
  • PROTECTION
  • DOWNLOADS
  • FORCE CALCULATOR
  • DISTRIBUTORS
PRODUCT CODE
ISNG7500-300
  • Description:

    The ISNG range is the optimum design for gas spring durability and conforms to the ISO11901 gas spring standard.

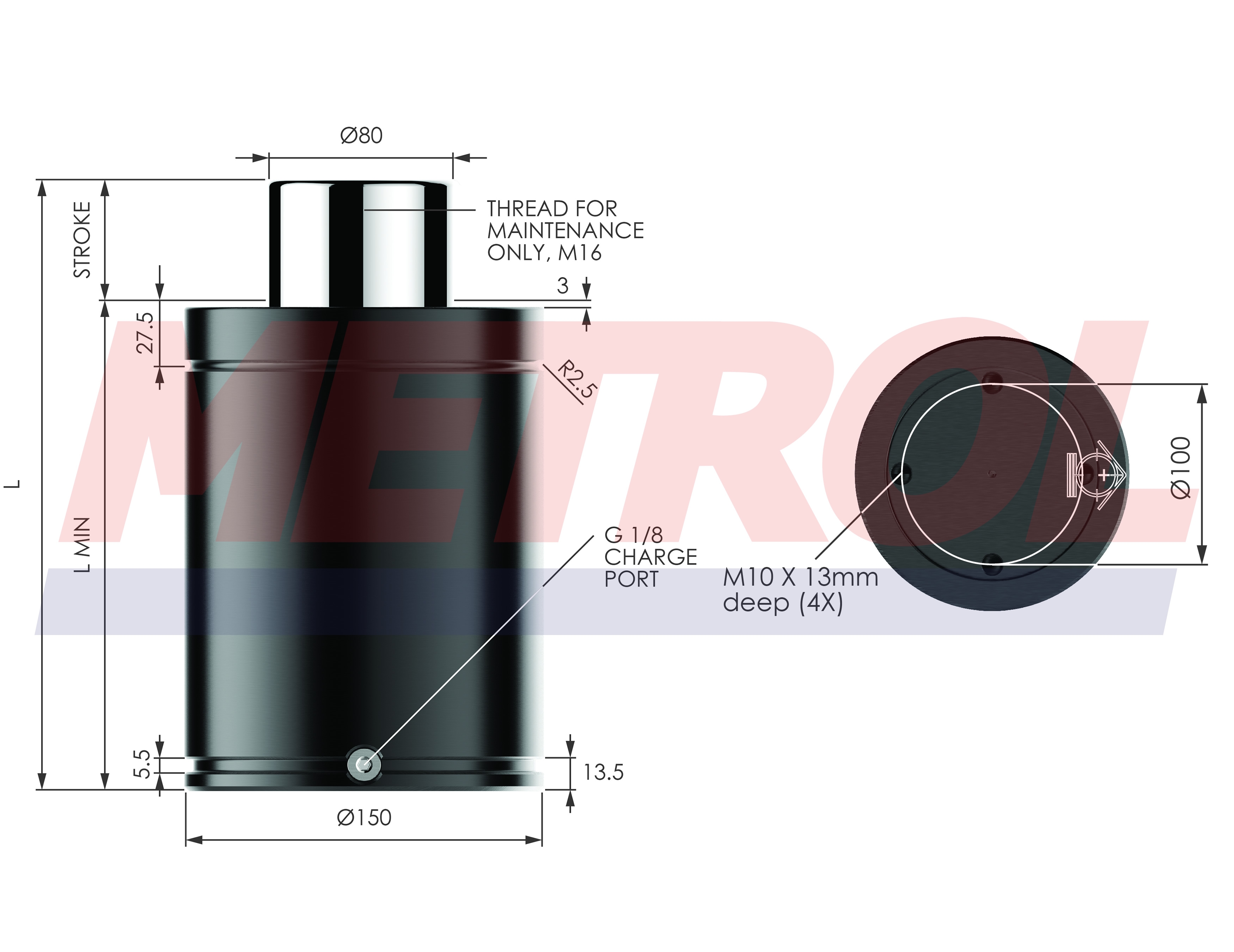

  • BODY DIAMETER:150 mm
  • PISTON DIAMETER:80 mm
  • INITIAL FORCE:7500 daN
  • MAXIMUM FORCE:11788 daN
  • STROKE:300 mm
  • L MIN:455 mm
  • LENGTH:755 mm
  • SAFETY MARGIN:3 mm
  • PCD:100 mm
  • TAPPED HOLE DIAMETER:M10
  • TAPPED HOLE DEPTH:13 mm
  • WEIGHT:42.90 Kg
  • MAX PRESSURE:150 Bar
  • MIN PRESSURE:20 Bar
  • MAX PISTON VELOCITY:1.6M/Sec
  • CHARGE PORT:G1/8

Features

Rod and Stop Guide design

ISNG-7500
