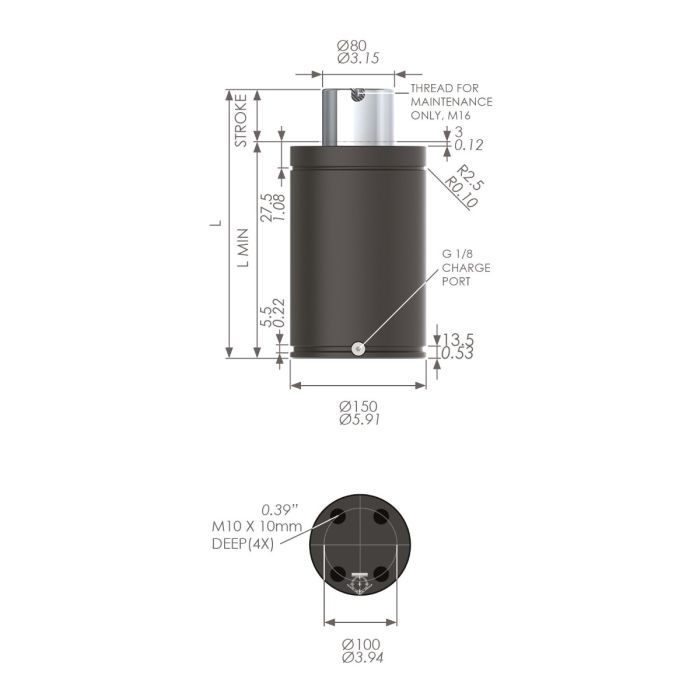

Nitrogen Gas Spring - ISNG7500-063.5
SKU
ISNG7500-063
| Body Dia. (mm) | 150 |
|---|---|
| Piston Dia. (mm) | 80 |
| Stroke (mm) | 63.5 |
| L Min (mm) | 218.5 |
| Full Length (mm) | 282 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 13 |
| Initial Force (N) | 75000 |
| Max Force (N) | 111560 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The ISNG range is the optimum design for gas spring durability and conforms to the ISO11901 gas spring standard.
