PRODUCT CODE
ISNG10000-300
  • Description:

    The ISNG range is the optimum design for gas spring durability and conforms to the ISO11901 gas spring standard.

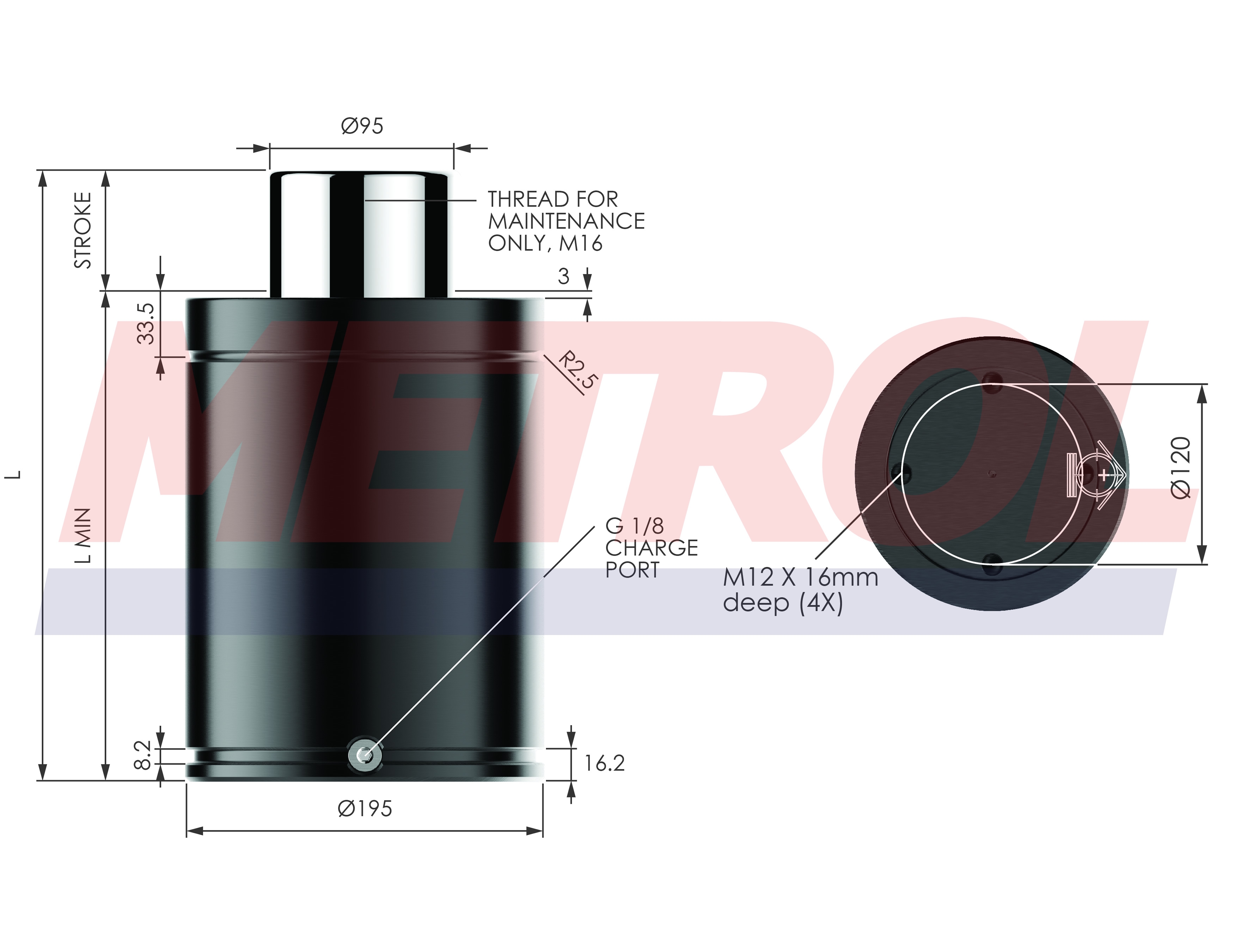

  • BODY DIAMETER:195 mm
  • PISTON DIAMETER:95 mm
  • INITIAL FORCE:10000 daN
  • MAXIMUM FORCE:15289 daN
  • STROKE:300 mm
  • L MIN:460 mm
  • LENGTH:760 mm
  • SAFETY MARGIN:3 mm
  • PCD:120 mm
  • TAPPED HOLE DIAMETER:M12
  • TAPPED HOLE DEPTH:16 mm
  • WEIGHT:68.00 Kg
  • MAX PRESSURE:150 Bar
  • MIN PRESSURE:20 Bar
  • MAX PISTON VELOCITY:1.6M/Sec

Features

Rod and Stop Guide design

ISNG-10000
