19x106 38mm travel with a force range of 1700N - 2800N
SKU
EX0170-038

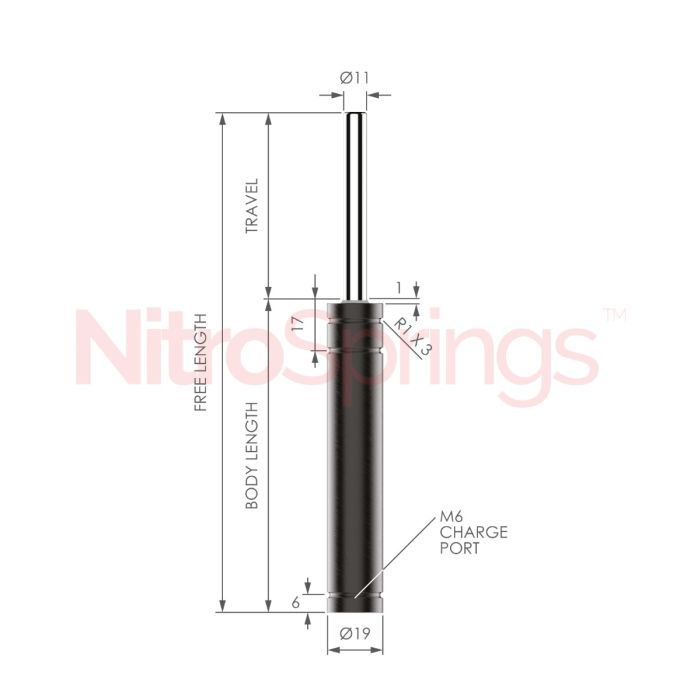

| Outside Dia. (mm) | 19 |
|---|---|
| Piston Dia. (mm) | 11 |
| Travel (mm) | 38 |
| Body Length (mm) | 68 |
| Free Length (mm) | 106 |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 1700 |
| Max Force (N) | 2800 |
| Certification | ISO 9001:2015 |
£48.59
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £44.95
- 25 + £41.30
