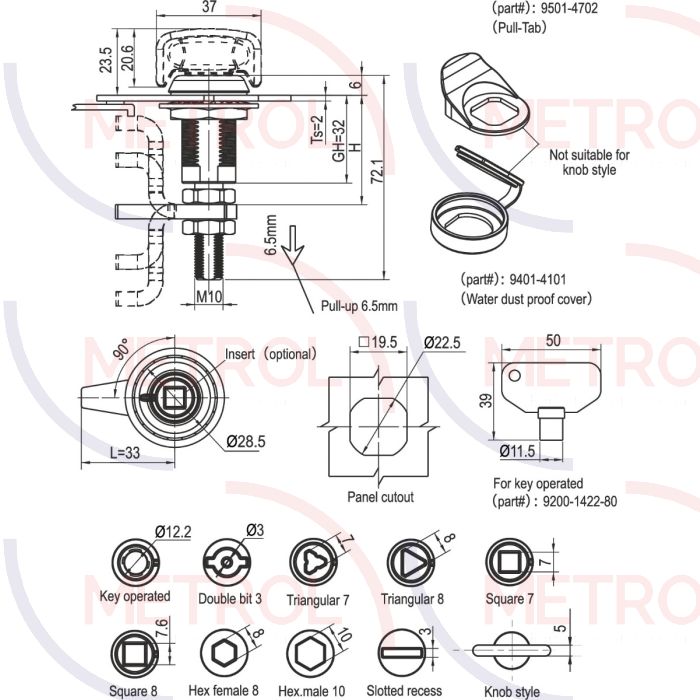

1422 Compression Latch Tubular Key Operated with Adjustable Grip Black Powder Coated

SKU
1422-20
More Information
Lock Types Tubular (Key Operated)
Colour/Finish Black Powder Coated
Material Mild Steel Zinc Plated Shaft, Die Cast Zinc Alloy
Panel Cutout 19.5x19.5mm
Grip Range 11.4-27.2mm, 25.4-28.6mm, 38.9-54.6mm, 52.6-68.3mm, 66.3-76.2mm
IP Rating IP65
Cam Option Cam included
Model 1422
Hardware Datasheets
Catalogues
£9.06
All prices exclude VAT
VOLUME DISCOUNTS
  • QUANTITYPRICE
  • 10 + £8.84
  • 50 + £7.16
  • 150 + £5.73

- Various lock types

- Universal panel cut out

- Salt spray tested to over 300hrs

- Guaranteed 1 year

Metrol Springs
1422-20
/media/catalog/product/1/4/1422-20_1.jpg
  • Product code
    Product Description
    Stock Status
  • 1422-20
    1422 Compression Latch Tubular Key Operated with Adjustable Grip Black Powder Coated
  • KEY-1422-20
    Tubular Key in Nickel Plating-Tubular 4 Teeth
  • 9401-4104
    Weather Cover in Black PA 9401-41 range-22.5x20.1mm
  • 9501-4702
    Pull Tab in Black PA range 9501-47-22.5x20.1
