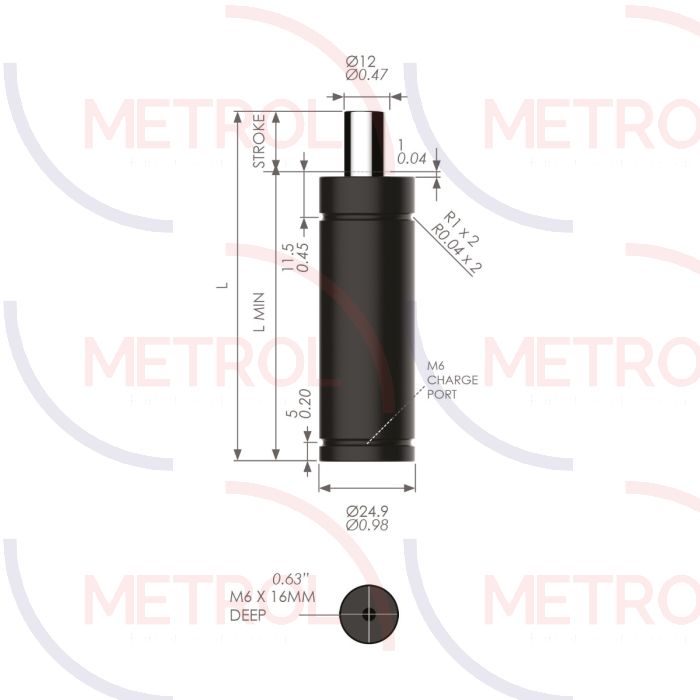

24.9x120 25mm travel with a force range of 4250N - 7400N
SKU
HDG0042-25
| Outside Dia. (mm) | 24.9mm |
|---|---|
| Piston Dia. (mm) | 12 |
| Travel (mm) | 25mm |
| Body Length (mm) | 95 |
| Free Length (mm) | 120 |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 4250 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
£93.48
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £86.47
- 25 + £79.46
-
Product codeProduct DescriptionStock Status
-
HDG0042-2524.9x120 25mm travel with a force range of 4250N - 7400NChat or Contact us
