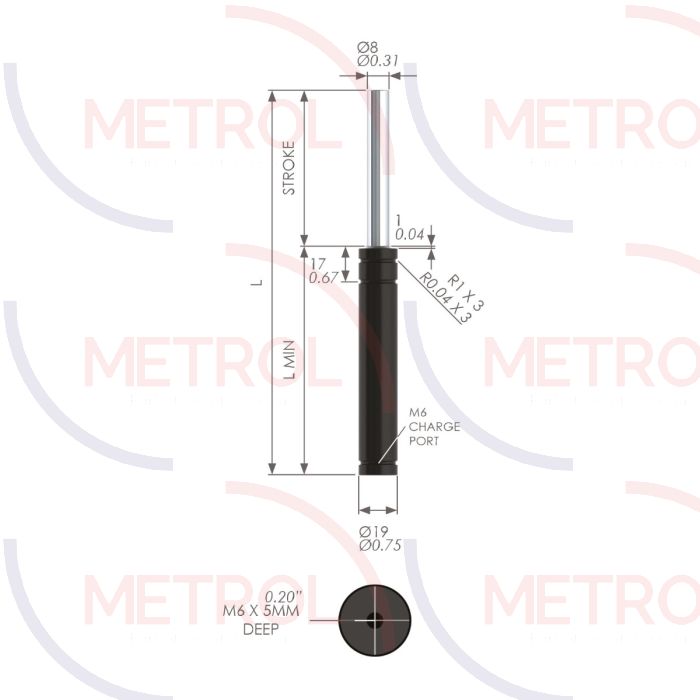

19x62 10mm travel mini compression spring
SKU
NG0-XXX-010
| Outside Dia. (mm) | 19mm |
|---|---|
| Piston Dia. (mm) | 8 |
| Travel (mm) | 10mm |
| Body Length (mm) | 52 |
| Free Length (mm) | 62 |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 300, 500, 700, 900 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
£55.89
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £51.70
- 25 + £47.51
-
Product codeProduct DescriptionStock Status
-
NG0-XXX-01019x62 10mm travel mini compression springChat or Contact us
