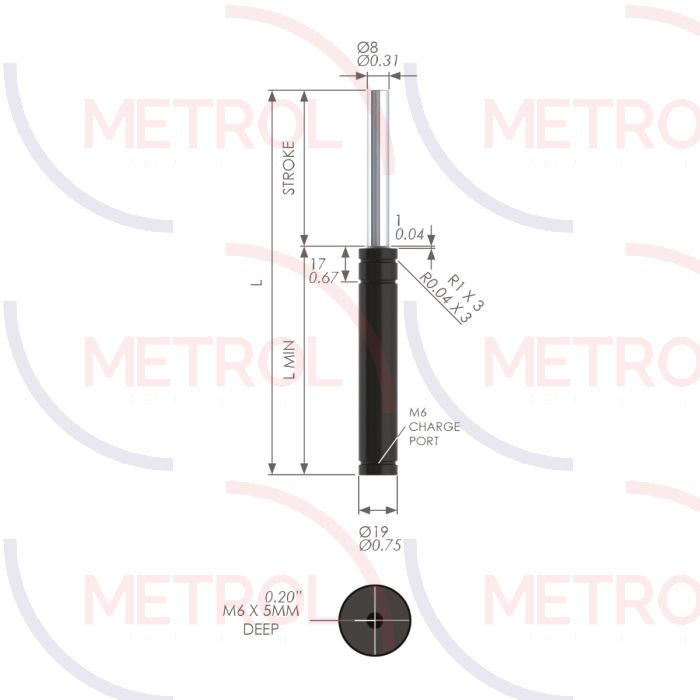

19x118.2 38mm travel mini compression spring
SKU
NG0-XXX-038
| Outside Dia. (mm) | 19mm |
|---|---|
| Piston Dia. (mm) | 8 |
| Travel (mm) | 38mm |
| Body Length (mm) | 80.1 |
| Free Length (mm) | 118.2 |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 300, 500, 700, 900 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
£54.16
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £50.10
- 25 + £46.04
-
Product codeProduct DescriptionStock Status
-
NG0-XXX-03819x118.2 38mm travel mini compression springChat or Contact us
