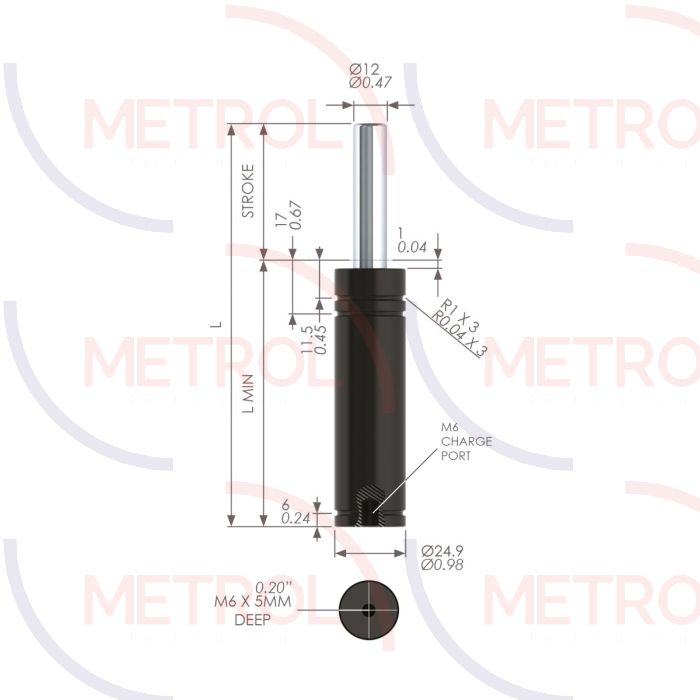

24.9x142 50mm travel mini compression spring
SKU
NG1-XXX-050
| Outside Dia. (mm) | 24.9mm |
|---|---|
| Piston Dia. (mm) | 12 |
| Travel (mm) | 50mm |
| Body Length (mm) | 92 |
| Free Length (mm) | 142 |
| Mounting Options | Drop-in Pocket, End Support, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 500, 1000, 1500, 2000 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
£55.43
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £51.27
- 25 + £47.11
-
Product codeProduct DescriptionStock Status
-
NG1-XXX-05024.9x142 50mm travel mini compression springChat or Contact us
