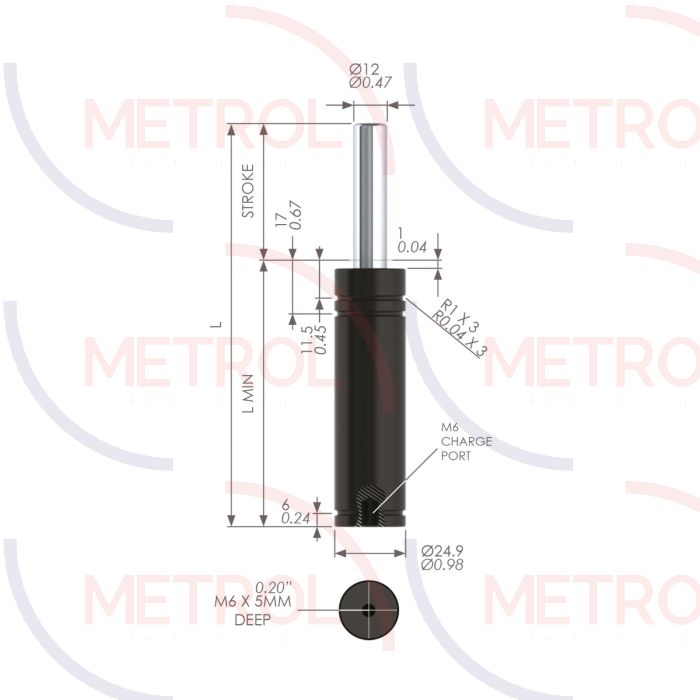

24.9x172 63mm travel mini compression spring
SKU
NG1-XXX-063
| Outside Dia. (mm) | 24.9mm |
|---|---|
| Piston Dia. (mm) | 12 |
| Travel (mm) | 63mm |
| Body Length (mm) | 108.5 |
| Free Length (mm) | 172 |
| Mounting Options | Drop-in Pocket, End Support, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 500, 1000, 1500, 2000 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
£57.94
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £53.59
- 25 + £49.25
-
Product codeProduct DescriptionStock Status
-
NG1-XXX-06324.9x172 63mm travel mini compression springChat or Contact us
