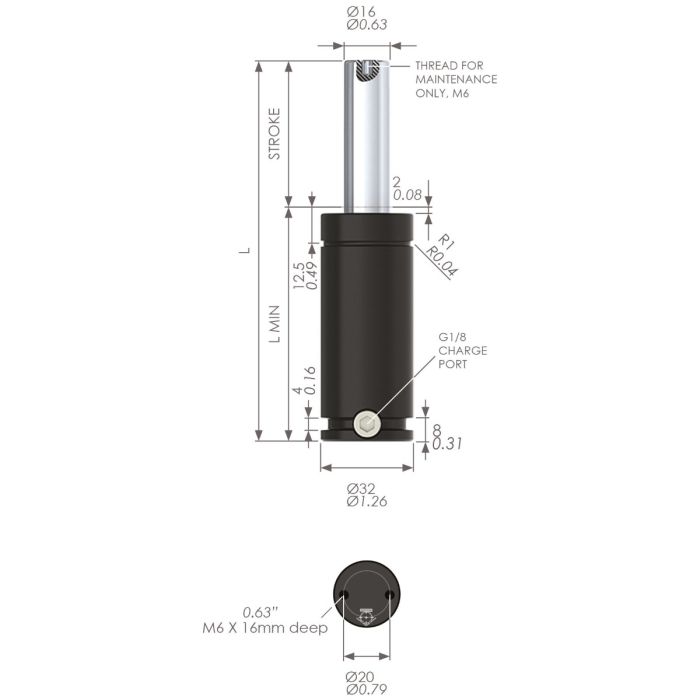

G-EX0360-025 Nitrogen Gas Spring, 360daN Force
SKU
G-EX0360-025
| Body Dia. (mm) | 32 |
|---|---|
| Piston Dia. (mm) | 16 |
| Stroke (mm) | 25 |
| L Min (mm) | 65 |
| Full Length (mm) | 90 |
| Mounting Options | End Support, Front Flange, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 3600 |
| Certification | PED 2014/68/EU |
Product Enquiry
The G-EX0360-025 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 527daN and an its overall length is 90mm
-
Product codeProduct DescriptionStock Status
-
G-EX0360-025G-EX0360-025 Nitrogen Gas Spring, 360daN ForceChat or Contact us
