HS-G-EX1000-050 Nitrogen Gas Spring, 920daN Force

SKU
HS-G-EX1000-050
More Information

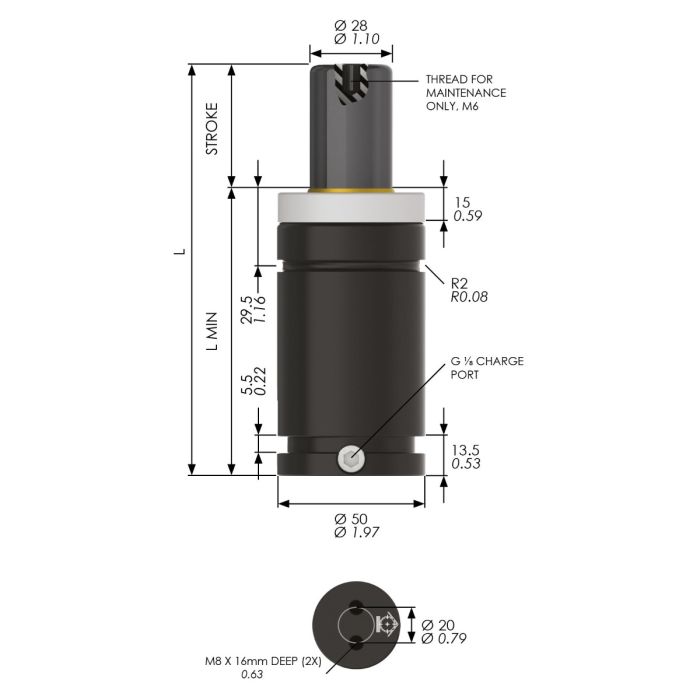

Body Dia. (mm) 50
Piston Dia. (mm) 28
Stroke (mm) 50
L Min (mm) 114
Full Length (mm) 165
Mounting Options Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange
Charge Port G1/8
Tapped Hole Depth (mm) 16
Initial Force (N) 9200
Max Force (N) 14600
Certification PED 2014/68/EU
No documents available, please contact us.
P.O.A Contact us for more information
All prices exclude VAT
The HS-G-EX1000-050 is an extended version of the HS-EX hot stamping gas spring with deeper tapped holes in the base. It features a maximum spring force of 1460daN and a weight of 0.94kg
