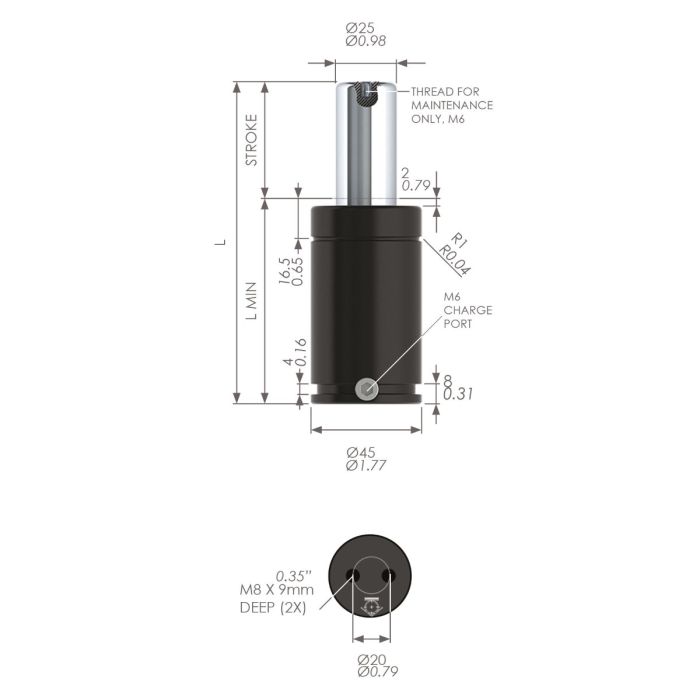

EX0750-038 Nitrogen Gas Spring, 740daN Force
SKU
EX0750-038
| Body Dia. (mm) | 45 |
|---|---|
| Piston Dia. (mm) | 25 |
| Stroke (mm) | 38 |
| L Min (mm) | 70 |
| Full Length (mm) | 108 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6 |
| Initial Force (N) | 7500 |
| Max Force (N) | 11930 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The EX range is our most powerful, compact rod sealed gas spring
-
Product codeProduct DescriptionStock Status
-
EX0750-038EX0750-038 Nitrogen Gas Spring, 740daN ForceChat or Contact us
