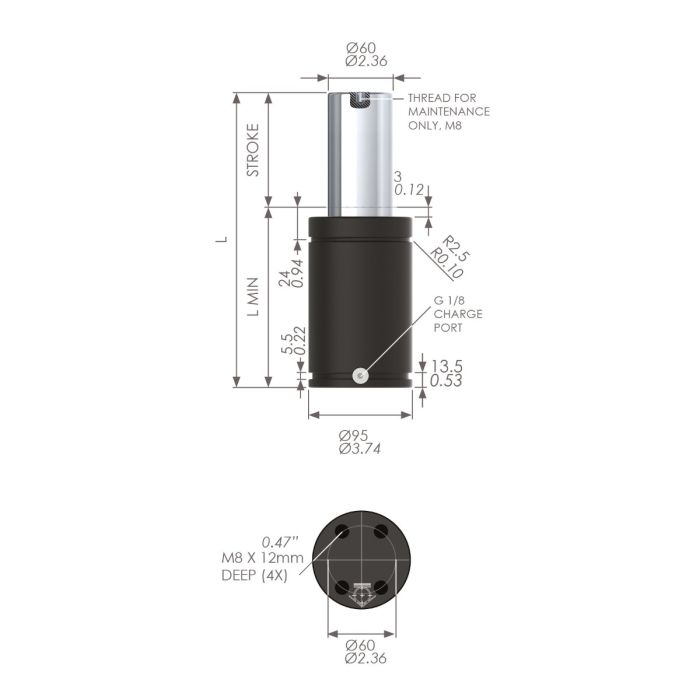

EX4200-100 Nitrogen Gas Spring, 4200daN Force
SKU
EX4200-100
| Body Dia. (mm) | 95 |
|---|---|
| Piston Dia. (mm) | 60 |
| Stroke (mm) | 100 |
| L Min (mm) | 158 |
| Full Length (mm) | 258 |
| Mounting Options | End Support, Front Flange, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 12 |
| Initial Force (N) | 42000 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The EX range is our most powerful, compact rod sealed gas spring
-
Product codeProduct DescriptionStock Status
-
EX4200-100EX4200-100 Nitrogen Gas Spring, 4200daN ForceChat or Contact us
