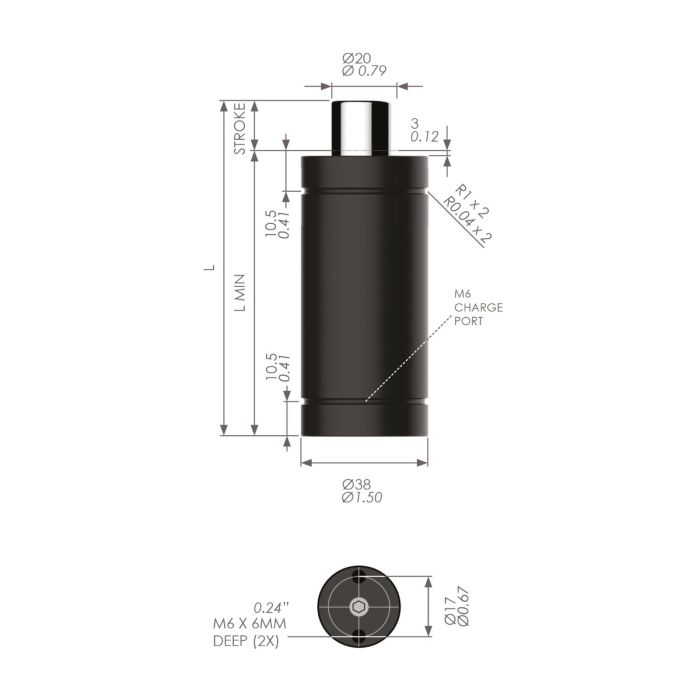

Nitrogen Gas Spring - HDG010-16
SKU
HDG010-16
| Body Dia. (mm) | 38 |
|---|---|
| Piston Dia. (mm) | 20 |
| Stroke (mm) | 16 |
| L Min (mm) | 84 |
| Full Length (mm) | 100 |
| Mounting Options | Front Flange, Tapped Hole, Square Flange, Square Front Flange, Side Port |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6.5 |
| Initial Force (N) | 10600 |
| Max Force (N) | 12370 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HDG range is a compact bore sealed gas spring, giving maximum force for the cylinder diameter.
-
Product codeProduct DescriptionStock Status
-
HDG010-16Nitrogen Gas Spring - HDG010-16Chat or Contact us
