Nitrogen Gas Spring - HDG047-25
SKU
HDG047-25

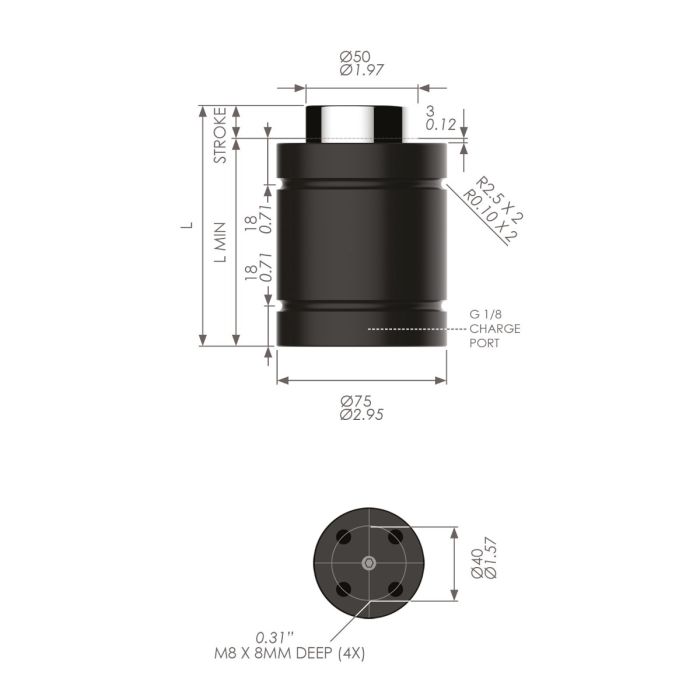

| Body Dia. (mm) | 75 |
|---|---|
| Piston Dia. (mm) | 50 |
| Stroke (mm) | 25 |
| L Min (mm) | 110 |
| Full Length (mm) | 135 |
| Mounting Options | Front Flange, Tapped Hole, Square Flange, Square Front Flange, Side Port |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 9 |
| Initial Force (N) | 47000 |
| Max Force (N) | 56770 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HDG range is a compact bore sealed gas spring, giving maximum force for the cylinder diameter.
-
Product codeProduct DescriptionStock Status
-
HDG047-25Nitrogen Gas Spring - HDG047-25Chat or Contact us
