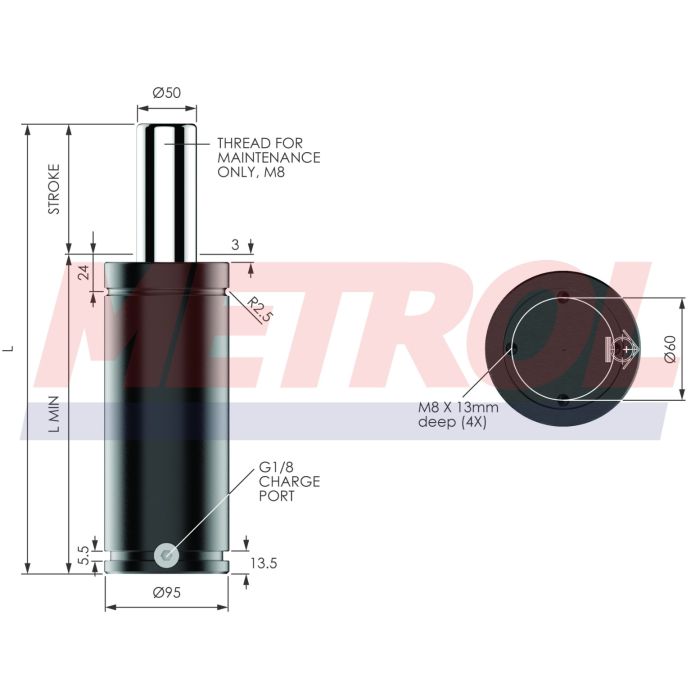

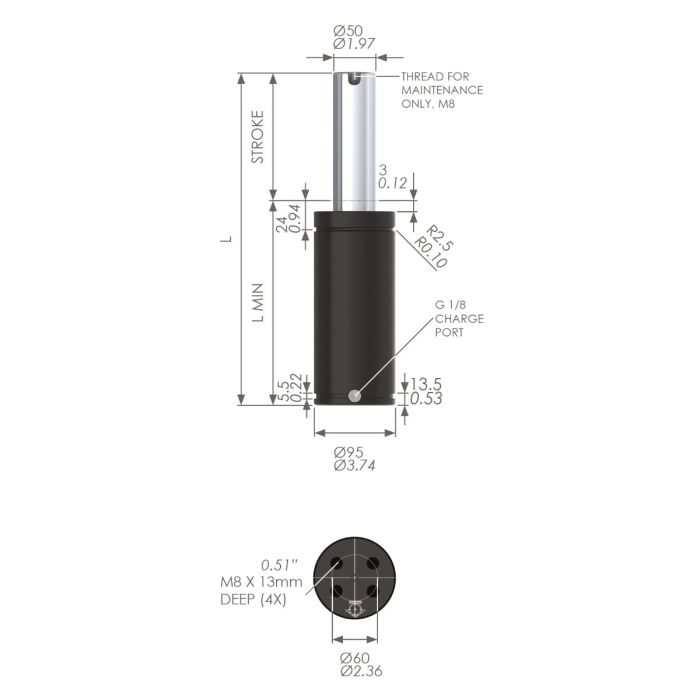

Nitrogen Gas Spring - ISNG3000-160
SKU
ISNG3000-160
| Body Dia. (mm) | 95 |
|---|---|
| Piston Dia. (mm) | 50 |
| Stroke (mm) | 160 |
| L Min (mm) | 280 |
| Full Length (mm) | 440 |

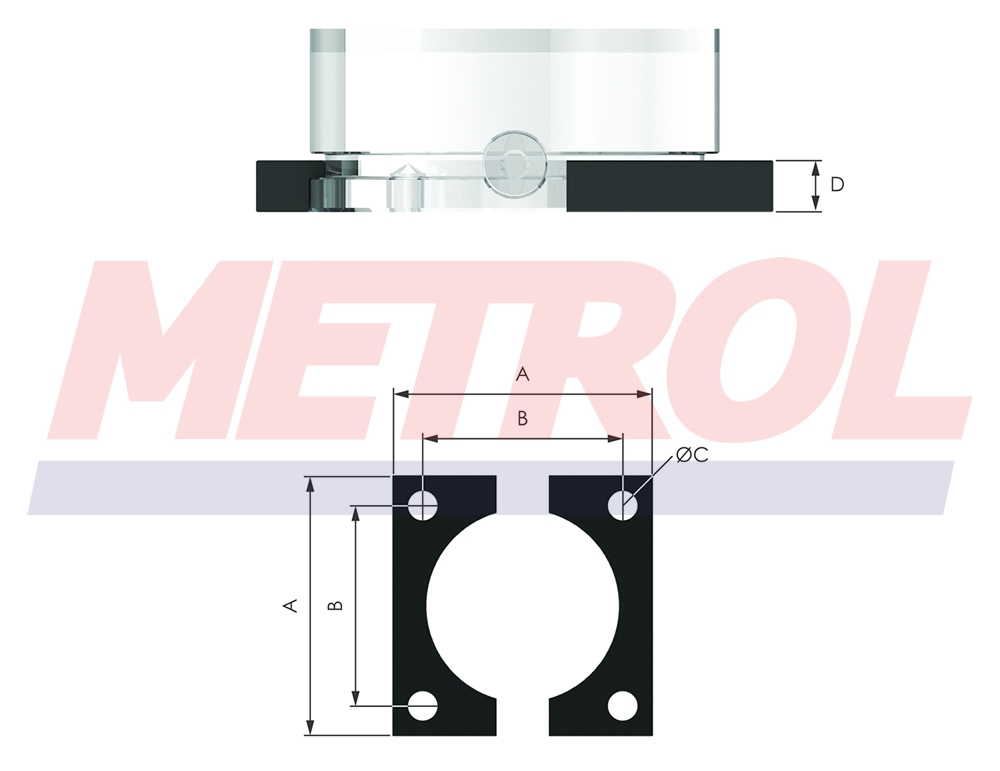

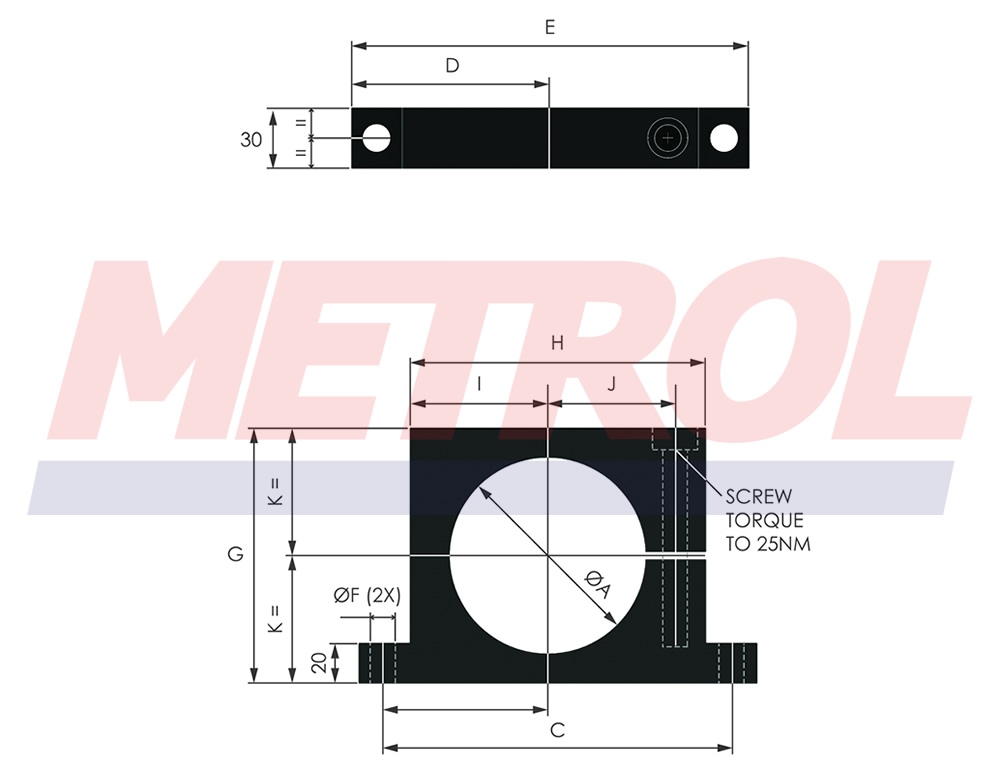

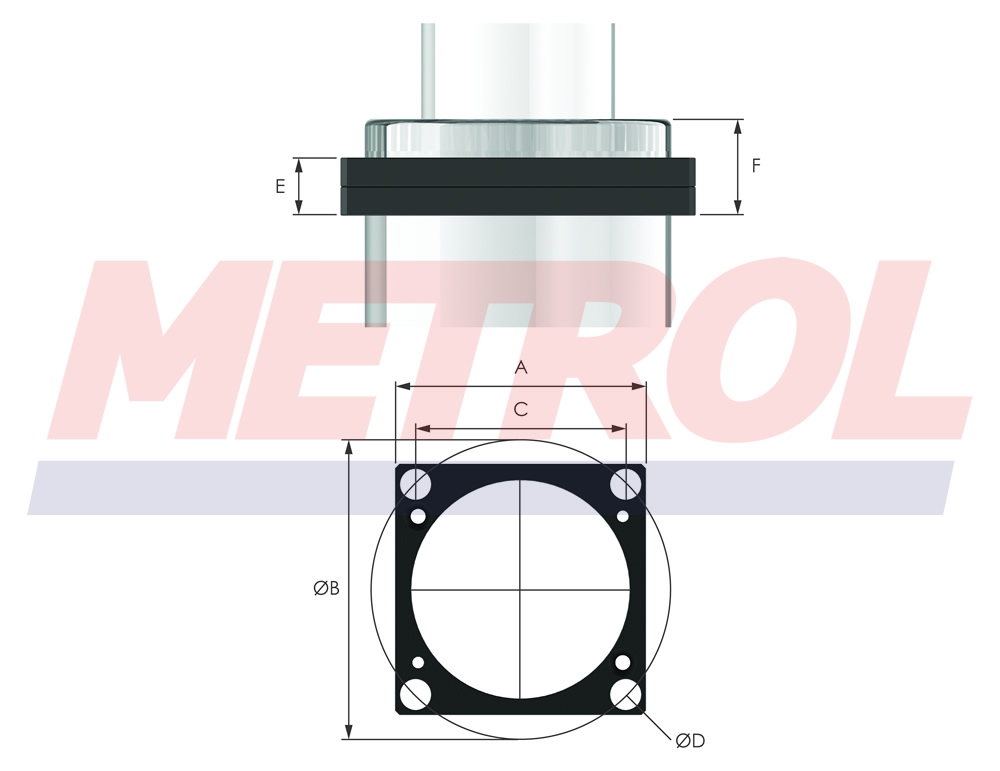

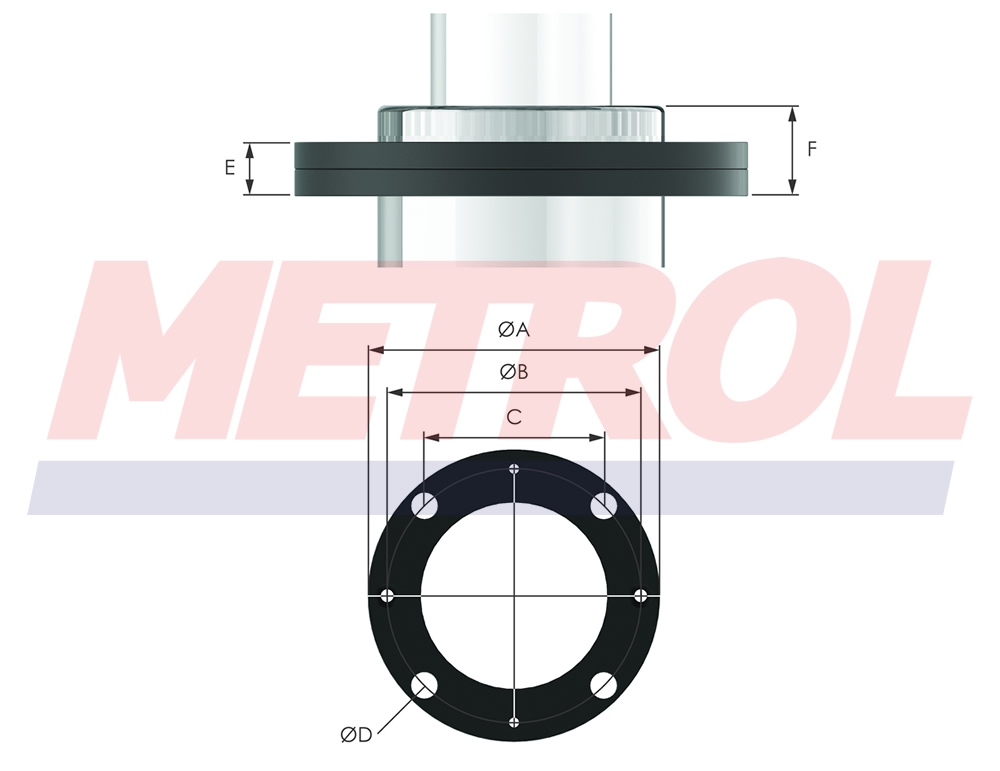

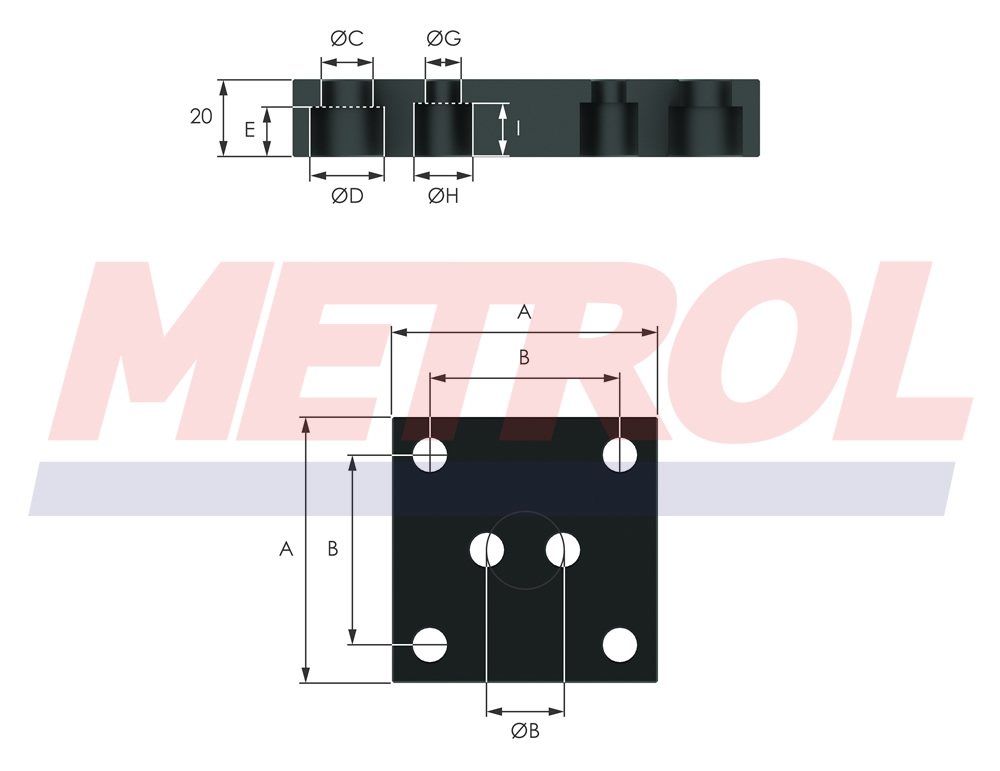

| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 13 |
| Initial Force (N) | 30000 |
| Max Force (N) | 44860 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The ISNG range is the optimum design for gas spring durability and conforms to the ISO11901 gas spring standard.
-
Product codeProduct DescriptionStock Status
-
ISNG3000-160Nitrogen Gas Spring - ISNG3000-160Chat or Contact us
