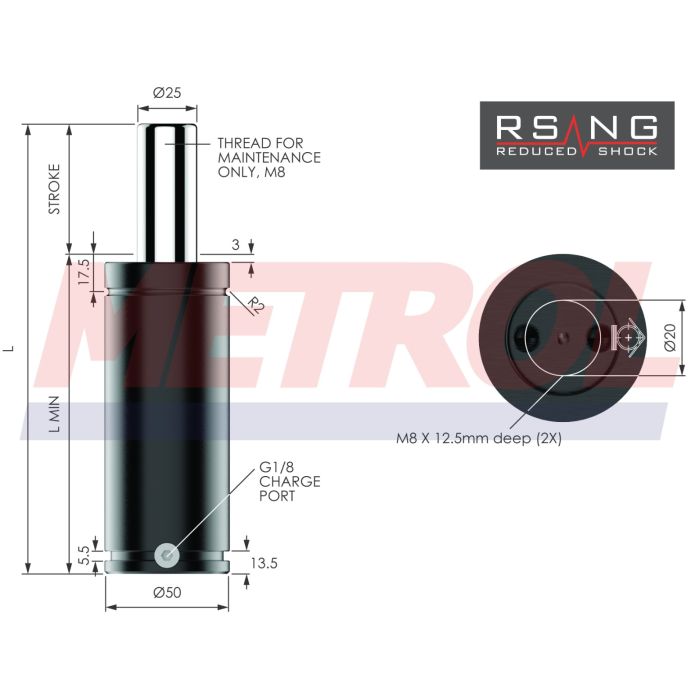

PRODUCT CODE
RSNG0750-050
  • Description:
    Reduced impact gas spring with damped return
  • BODY DIAMETER:50 mm
  • PISTON DIAMETER:25 mm
  • INITIAL FORCE:750 daN
  • MAXIMUM FORCE:1185 daN
  • STROKE:50 mm
  • L MIN:145 mm
  • LENGTH:195 mm
  • SAFETY MARGIN:3 mm
  • PCD:20 mm
  • TAPPED HOLE DIAMETER:M8
  • TAPPED HOLE DEPTH:12.5 mm
  • WEIGHT:1.60 Kg
  • MAX PRESSURE:150 Bar
  • MIN PRESSURE:20 Bar
  • MAX PISTON VELOCITY:1.6M/Sec

Features

Rod and Stop Guide design

Nitrogen Gas Spring - RSNG0750-050
