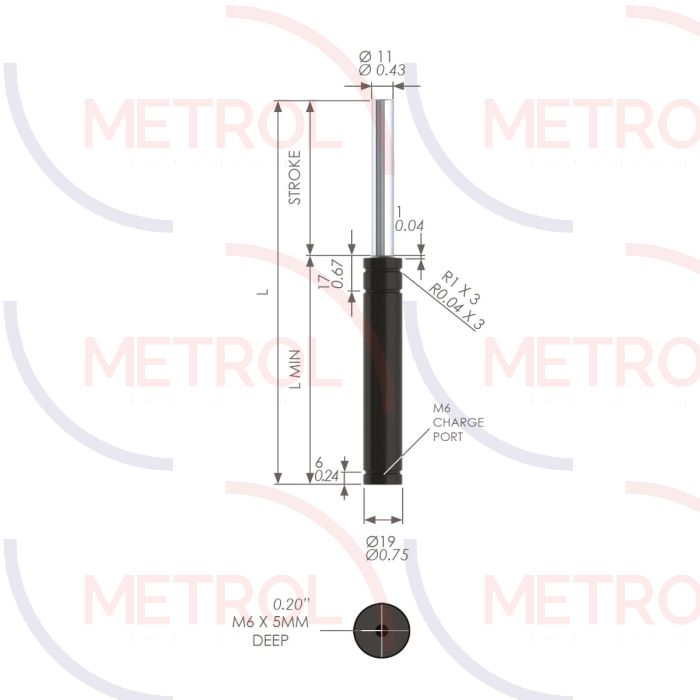

19x94 32mm travel with a force range of 1700N - 2800N
SKU
EX0170-032
| Outside Dia. (mm) | 19mm |
|---|---|
| Piston Dia. (mm) | 11 |
| Travel (mm) | 32mm |
| Body Length (mm) | 62 |
| Free Length (mm) | 94 |
| Mounting Options | Drop-in Pocket, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 1700 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
£58.31
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £53.93
- 25 + £49.56
-
Product codeProduct DescriptionStock Status
-
EX0170-03219x94 32mm travel with a force range of 1700N - 2800NChat or Contact us
