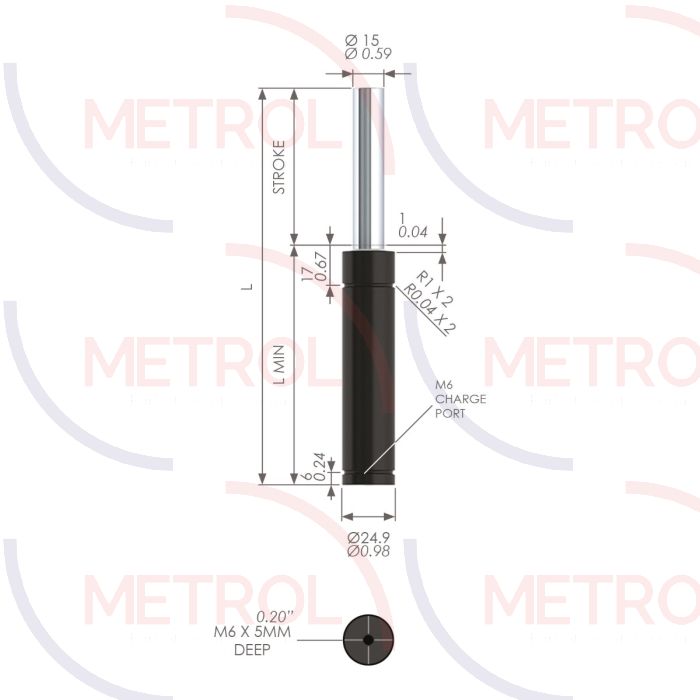

24.9x156 63mm travel with a force range of 3200N - 5300N
SKU
EX0320-063
| Outside Dia. (mm) | 24.9mm |
|---|---|
| Piston Dia. (mm) | 15 |
| Travel (mm) | 63mm |
| Body Length (mm) | 93 |
| Free Length (mm) | 156 |
| Mounting Options | Drop-in Pocket, End Support, Front Flange, M6 Tapped Hole (strokes up to 25mm) |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 5 |
| Initial Force (N) | 3200 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
£63.99
All prices exclude VAT
VOLUME DISCOUNTS
- QUANTITYPRICE
- 10 + £59.19
- 25 + £54.39
-
Product codeProduct DescriptionStock Status
-
EX0320-06324.9x156 63mm travel with a force range of 3200N - 5300NChat or Contact us
