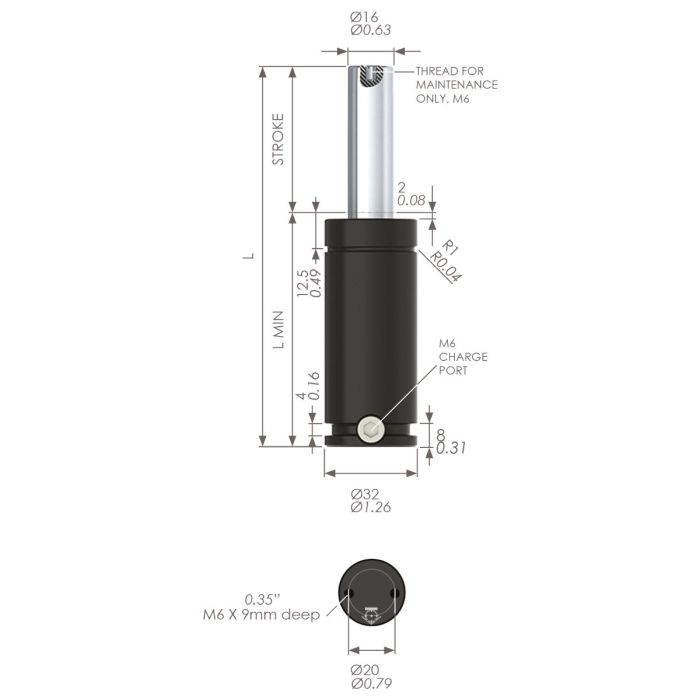

EX0360-010 Nitrogen Gas Spring, 360daN Force
SKU
EX0360-010
| Body Dia. (mm) | 32 |
|---|---|
| Piston Dia. (mm) | 16 |
| Stroke (mm) | 10 |
| L Min (mm) | 40 |
| Full Length (mm) | 50 |
| Mounting Options | End Support, Front Flange, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6 |
| Initial Force (N) | 3600 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The EX0360-010 is part of the powerful EX range. It is a compact rod sealed gas spring with a maximum spring force of 429daN
-
Product codeProduct DescriptionStock Status
-
EX0360-010EX0360-010 Nitrogen Gas Spring, 360daN ForceChat or Contact us
