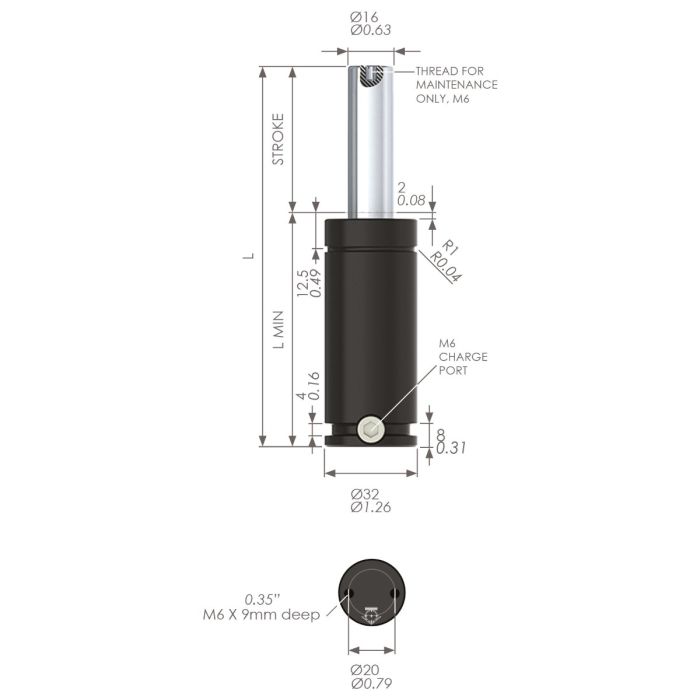

EX0360-050 Nitrogen Gas Spring, 360daN Force
SKU
EX0360-050
| Body Dia. (mm) | 32 |
|---|---|
| Piston Dia. (mm) | 16 |
| Stroke (mm) | 50 |
| L Min (mm) | 80 |
| Full Length (mm) | 130 |
| Mounting Options | End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6 |
| Initial Force (N) | 3600 |
| Max Force (N) | 4570 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The EX03660-050 has upper C and lower U grooves for numerous flange mounting options. It is part of one of the strongs gas springs ranges with a maximum spring force of 457daN
