EX0360-063 Nitrogen Gas Spring, 360daN Force

SKU
EX0360-063
More Information
Body Dia. (mm) 8-10mm
L Min (mm) 3557
Full Length (mm) 1522
Mounting Options End Support, Front Flange, Square Flange, Square Front Flange
Charge Port M6x1
Certification ISO 9001:2015, PED 2014/68/EU
No documents available, please contact us.

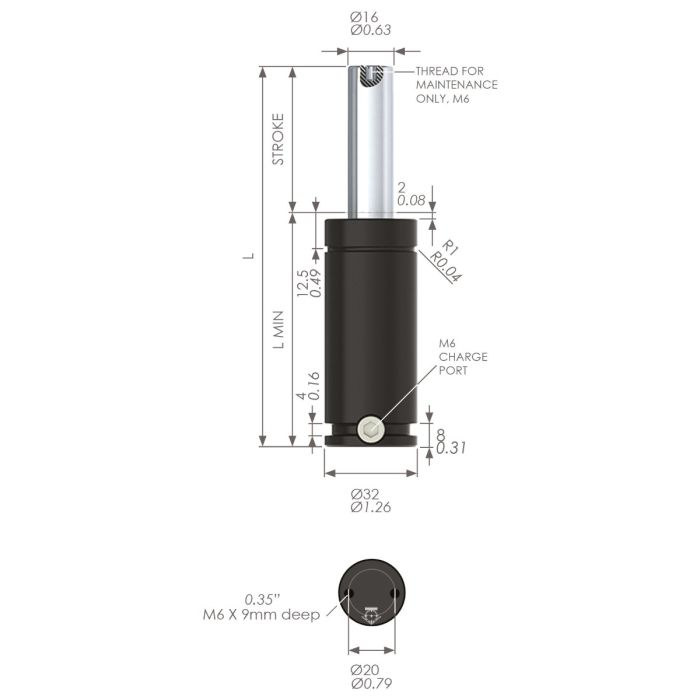

main product photo

Product Enquiry

Customer Information
Back
The EX0360-063 features an initial spring force of 360daN with the maximum being 459daN. It weighs 0.33kg and has an overall length of 156mm
  • Product code
    Product Description
    Stock Status
  • EX0360-063
    EX0360-063 Nitrogen Gas Spring, 360daN Force
