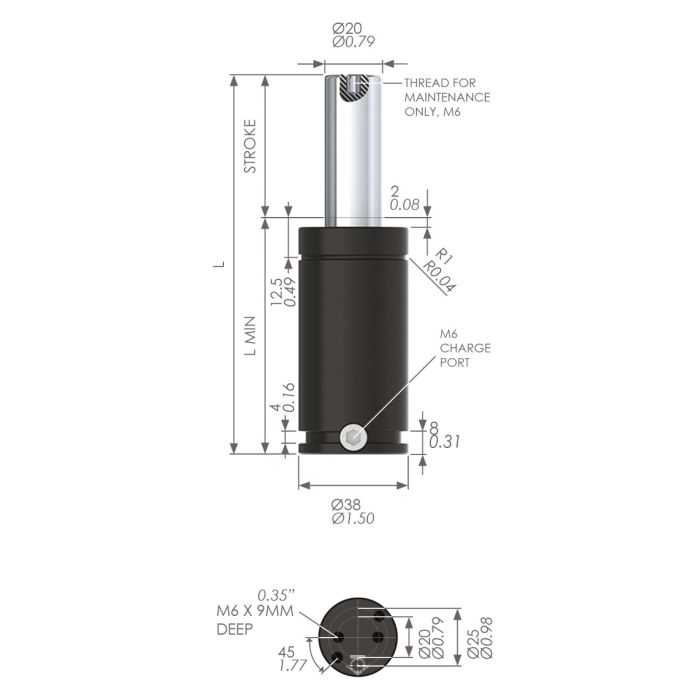

EX0500-010 Nitrogen Gas Spring, 500daN Force
SKU
EX0500-010
| Body Dia. (mm) | 38 |
|---|---|
| Piston Dia. (mm) | 20 |
| Stroke (mm) | 10 |
| L Min (mm) | 40 |
| Full Length (mm) | 50 |
| Mounting Options | End Support, Front Flange, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6 |
| Initial Force (N) | 5000 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The EX0500-010 is a compact rod sealed gas spring that has a maximum spring force of 764daN. It also has upper C and lower U grooves that allow a variety of flange mounting options
-
Product codeProduct DescriptionStock Status
-
EX0500-010EX0500-010 Nitrogen Gas Spring, 500daN ForceChat or Contact us
