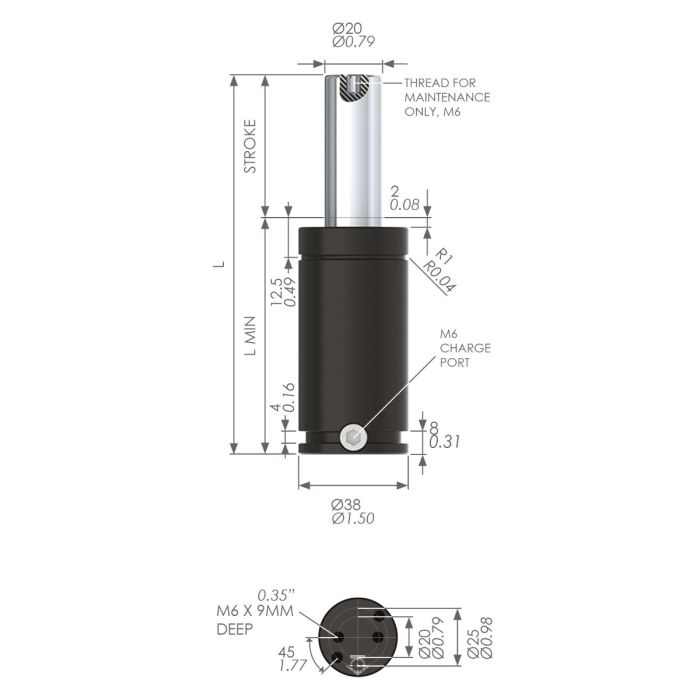

EX0500-016 Nitrogen Gas Spring, 500daN Force
SKU
EX0500-016
| Body Dia. (mm) | 38 |
|---|---|
| Piston Dia. (mm) | 20 |
| Stroke (mm) | 16 |
| L Min (mm) | 46 |
| Full Length (mm) | 62 |
| Mounting Options | End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6 |
| Initial Force (N) | 5000 |
| Max Force (N) | 6930 |
| Certification | ISO 9001:2015, PED 2014/68/EU |
Product Enquiry
The EX0500-016 has an initial force of 500daN with the maximum being 754daN. It also features upper C and lower U grooves for numerous flange mounting options
-
Product codeProduct DescriptionStock Status
-
EX0500-016EX0500-016 Nitrogen Gas Spring, 500daN ForceChat or Contact us
