EX0500-080 Nitrogen Gas Spring, 500daN Force

SKU
EX0500-080
More Information
Body Dia. (mm) 10.1-13mm
L Min (mm) 4120
Mounting Options End Support, Front Flange, Square Flange, Square Front Flange
Charge Port M6x1
Certification ISO 9001:2015, PED 2014/68/EU
No documents available, please contact us.
main product photo

Product Enquiry

Customer Information
Back

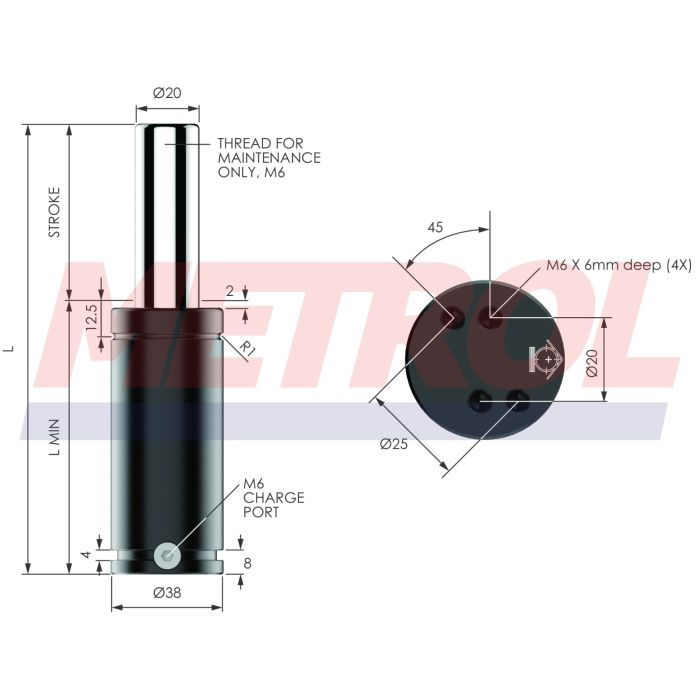

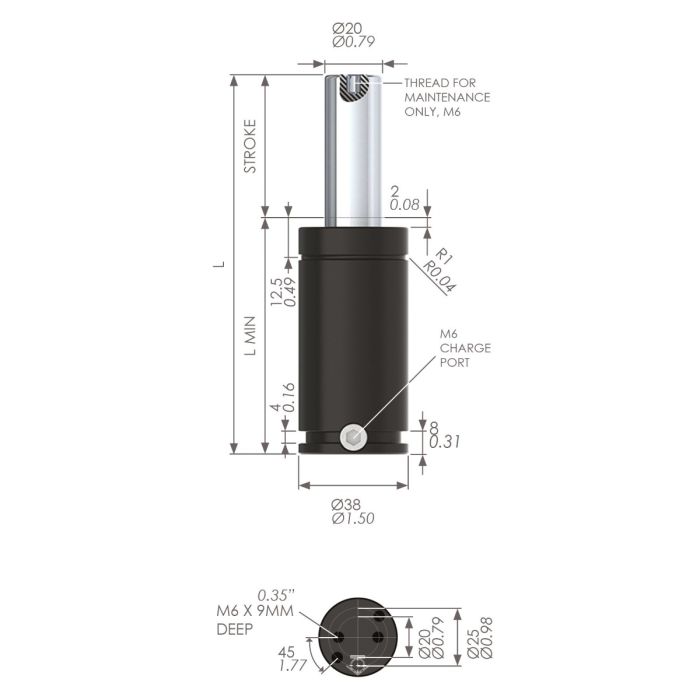

The EX0500-080 has upper C and lower U grooves for various flange mounting options. It also features a maximum spring force of 814daN and an overall length of 190mm
  • Product code
    Product Description
    Stock Status
  • EX0500-080
    EX0500-080 Nitrogen Gas Spring, 500daN Force
