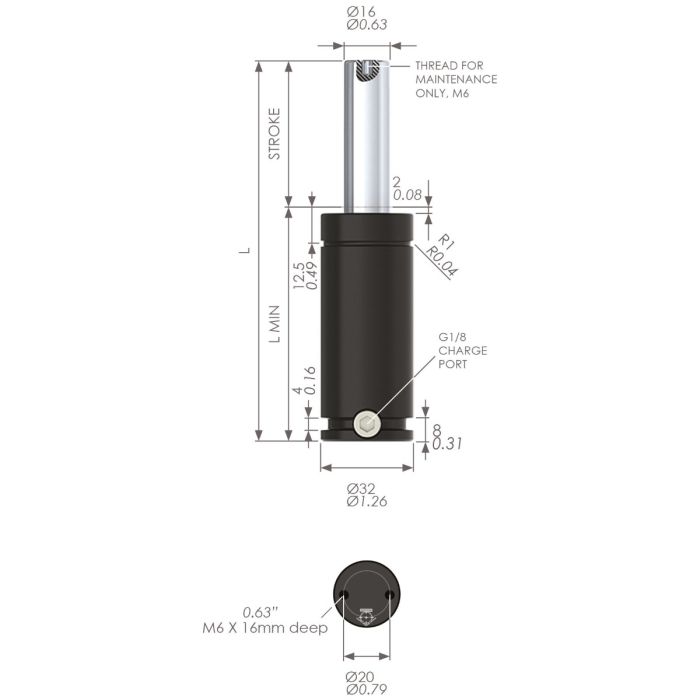

G-EX0360-016 Nitrogen Gas Spring, 360daN Force
SKU
G-EX0360-016
| Body Dia. (mm) | 32 |
|---|---|
| Piston Dia. (mm) | 16 |
| Stroke (mm) | 16 |
| L Min (mm) | 56 |
| Full Length (mm) | 72 |
| Mounting Options | End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 3600 |
| Max Force (N) | 4410 |
| Certification | PED 2014/68/EU |
Product Enquiry
The G-EX0360-016 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 515daN and an its overall length is 72mm
