G-EX0360-075 Nitrogen Gas Spring, 360daN Force

  • SPECIFICATIONS
  • MOUNTING OPTIONS
  • MAINTENANCE
  • PROTECTION
  • DOWNLOADS
  • FORCE CALCULATOR
  • DISTRIBUTORS
PRODUCT CODE
G-EX0360-075
  • Description:

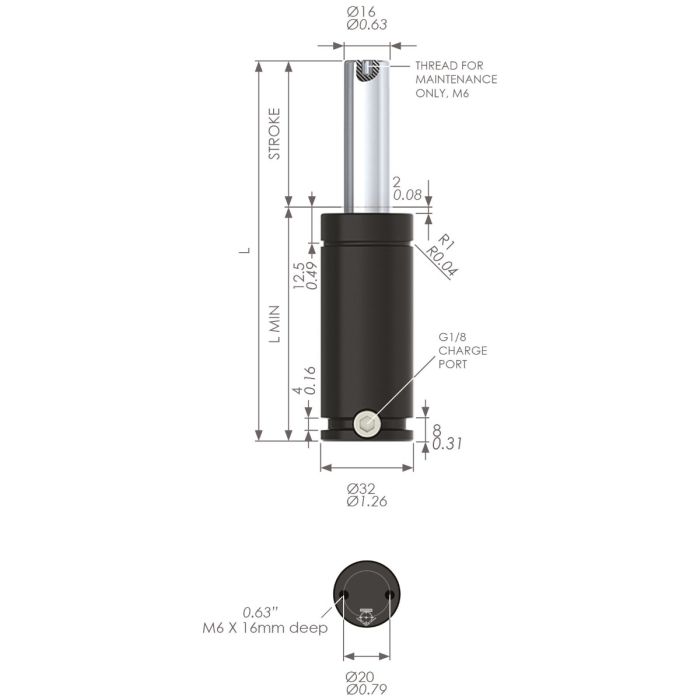

    The G-EX0360-075 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 553daN and an its overall length is 190mm
  • BODY DIAMETER:32 mm
  • PISTON DIAMETER:16 mm
  • INITIAL FORCE:360 daN
  • MAXIMUM FORCE:460 daN
  • STROKE:75 mm
  • L MIN:115 mm
  • LENGTH:190 mm
  • SAFETY MARGIN:2 mm
  • PCD:20 mm
  • TAPPED HOLE DIAMETER:M6
  • TAPPED HOLE DEPTH:15 mm
  • WEIGHT:0.40 Kg
  • MAX PRESSURE:150 Bar
  • MIN PRESSURE:20 Bar
  • MAX PISTON VELOCITY:1.6M/Sec
  • CHARGE PORT:G1/8

Features

Flexi Guide design

G-EX-0360
