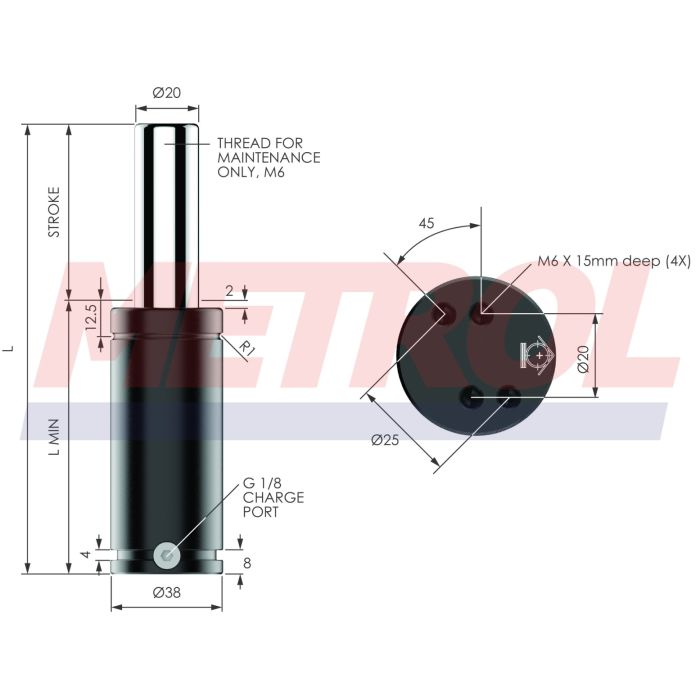

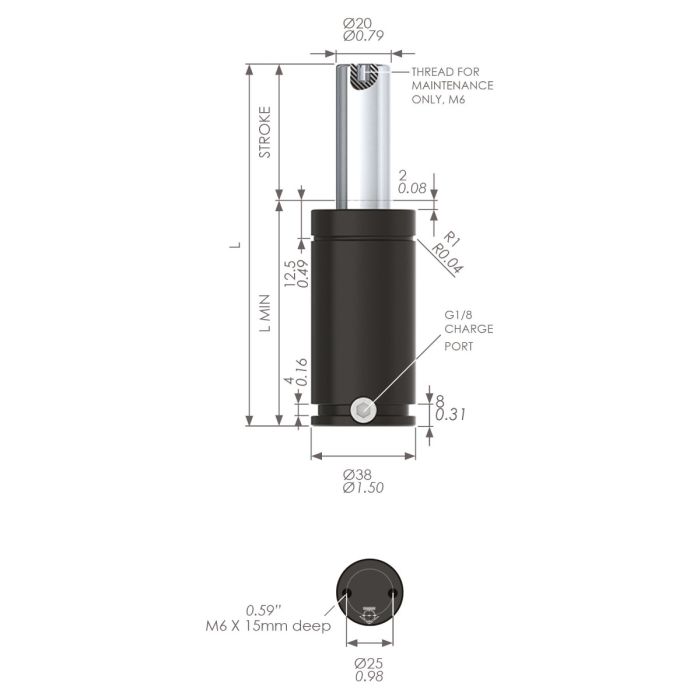

G-EX0500-125 Nitrogen Gas Spring, 500daN Force
SKU
G-EX0500-125
| Body Dia. (mm) | 38 |
|---|---|
| Piston Dia. (mm) | 20 |
| Stroke (mm) | 125 |
| L Min (mm) | 165 |
| Full Length (mm) | 290 |
| Mounting Options | End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 4700 |
| Max Force (N) | 7100 |
| Certification | PED 2014/68/EU |
Product Enquiry
The G-EX0500-125 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 821daN and an its overall length is 290mm
-
Product codeProduct DescriptionStock Status
-
G-EX0500-125G-EX0500-125 Nitrogen Gas Spring, 500daN ForceChat or Contact us
