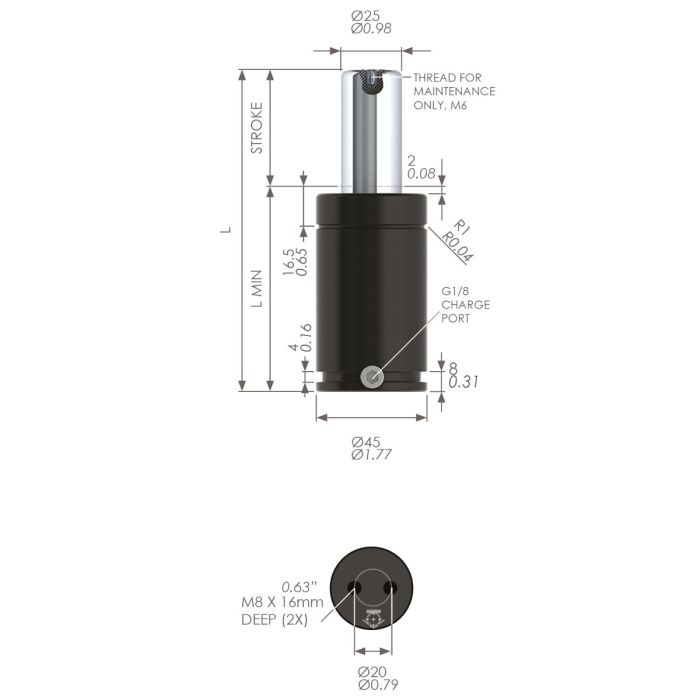

G-EX0750-063 Nitrogen Gas Spring, 750daN Force
SKU
G-EX0750-063
| Body Dia. (mm) | 45 |
|---|---|
| Piston Dia. (mm) | 25 |
| Stroke (mm) | 63 |
| L Min (mm) | 110 |
| Full Length (mm) | 173 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 7400 |
| Max Force (N) | 12050 |
| Certification | PED 2014/68/EU |
Product Enquiry
The G-EX0750-063 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 1220daN and an its overall length is 173mm.
Please Note: All measurements are in Millimeters
Please Note: All measurements are in Millimeters
