G-EX1000-016 Nitrogen Gas Spring, 1000daN Force
SKU
G-EX1000-016

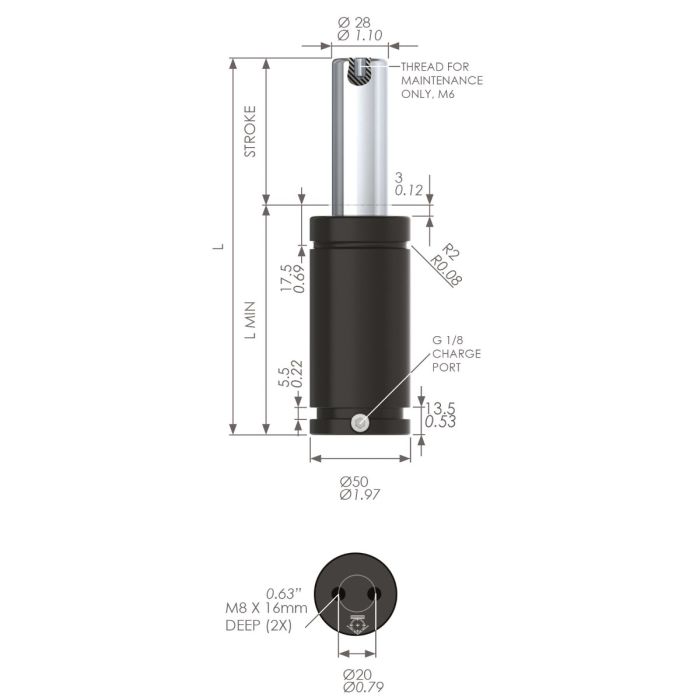

| Body Dia. (mm) | 50 |
|---|---|
| Piston Dia. (mm) | 28 |
| Stroke (mm) | 16 |
| L Min (mm) | 68 |
| Full Length (mm) | 84 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 9200 |
| Max Force (N) | 14150 |
| Certification | PED 2014/68/EU |
Product Enquiry
The G-EX1000-016 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 1580daN and an its overall length is 84mm.
Please Note: All measurements are in Millimeters
Please Note: All measurements are in Millimeters
-
Product codeProduct DescriptionStock Status
-
G-EX1000-016G-EX1000-016 Nitrogen Gas Spring, 1000daN ForceChat or Contact us
