G-EX1000-050 Nitrogen Gas Spring, 1000daN Force
SKU
G-EX1000-050

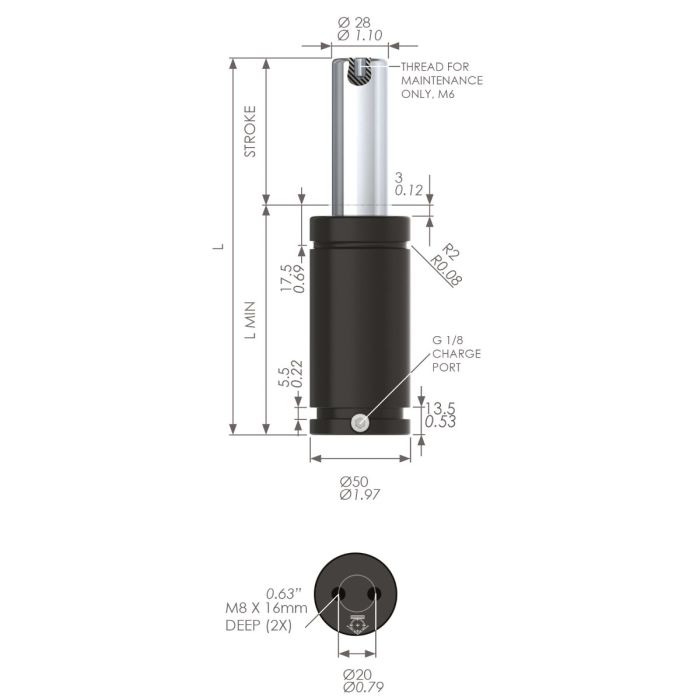

| Body Dia. (mm) | 50 |
|---|---|
| Piston Dia. (mm) | 28 |
| Stroke (mm) | 50 |
| L Min (mm) | 102 |
| Full Length (mm) | 152 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 9200 |
| Max Force (N) | 15050 |
| Certification | PED 2014/68/EU |
Product Enquiry
The G-EX1000-050 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 1680daN and an its overall length is 152mm.
Please Note: All measurements are in Millimeters
