G-EX1500-080 Nitrogen Gas Spring, 1500daN Force
SKU
G-EX1500-080

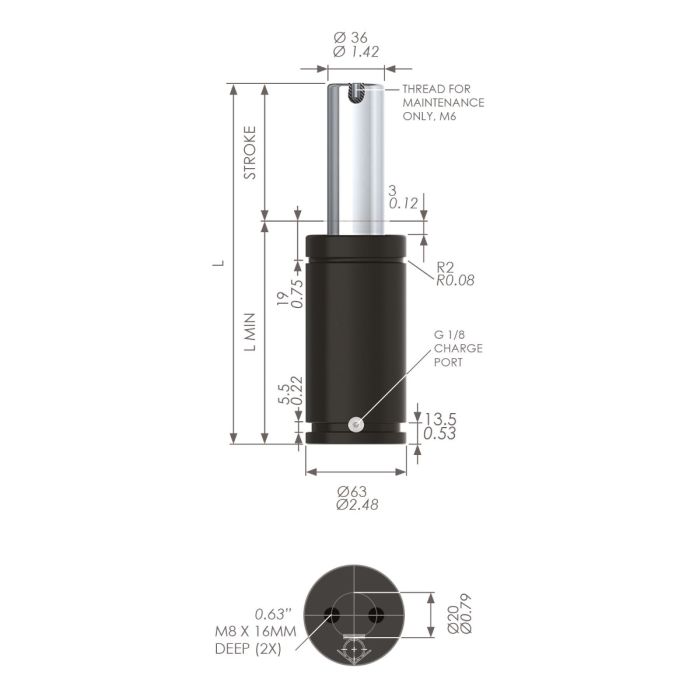

| Body Dia. (mm) | 63 |
|---|---|
| Piston Dia. (mm) | 36 |
| Stroke (mm) | 80 |
| L Min (mm) | 132 |
| Full Length (mm) | 212 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 15000 |
| Max Force (N) | 25500 |
| Certification | PED 2014/68/EU |
Product Enquiry
The G-EX1500-080 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 2550daN and an its overall length is 212mm.
Please Note: All measurements are in Millimeters
