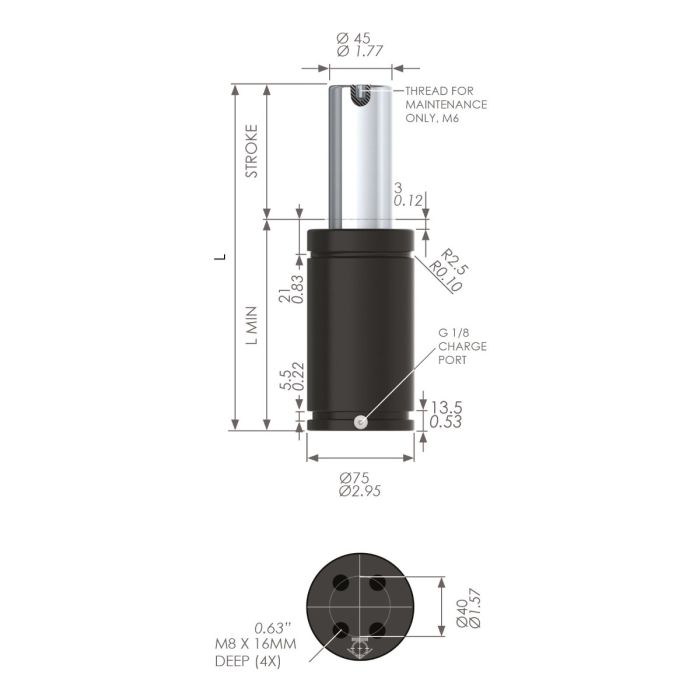

G-EX2400-075 Nitrogen Gas Spring, 2400daN Force
SKU
G-EX2400-075
| Body Dia. (mm) | 75 |
|---|---|
| Piston Dia. (mm) | 45 |
| Stroke (mm) | 75 |
| L Min (mm) | 134 |
| Full Length (mm) | 209 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 16 |
| Initial Force (N) | 24000 |
| Max Force (N) | 40320 |
| Certification | PED 2014/68/EU |
Product Enquiry
The G-EX2400-075 is part of the robust G-EX range and is a powerful compact rod sealed gas spring. It has a maximum spring force of 3930daN and an its overall length is 209mm.
Please Note: All measurements are in Millimeters
