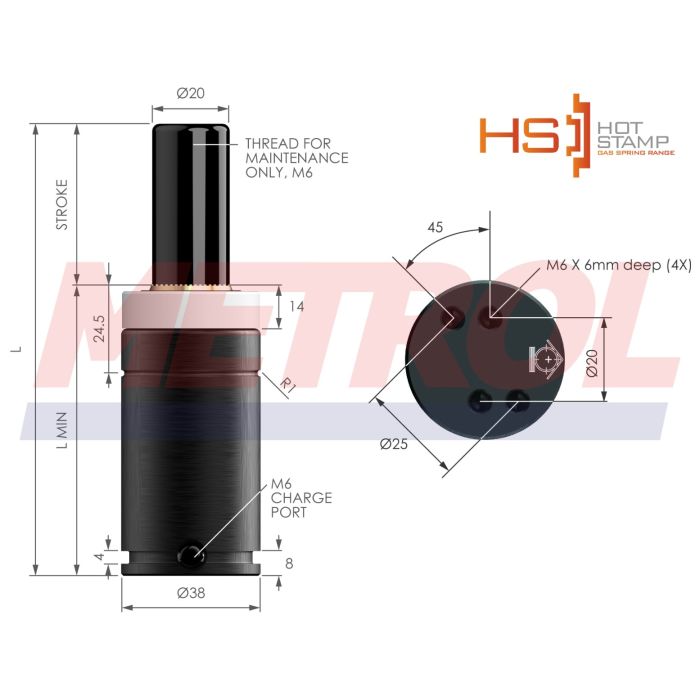

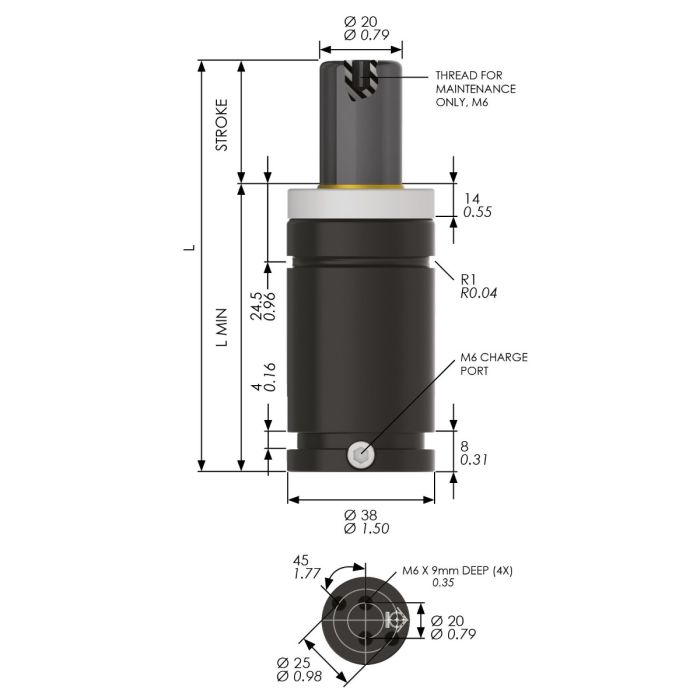

HS-EX0500-025Nitrogen Gas Spring, 470daN Force
SKU
HSEX0500-025
| Body Dia. (mm) | 38 |
|---|---|
| Piston Dia. (mm) | 20 |
| Stroke (mm) | 25 |
| L Min (mm) | 67 |
| Full Length (mm) | 93 |
| Mounting Options | End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 9 |
| Initial Force (N) | 5000 |
| Max Force (N) | 7300 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX0500-025 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 730daN and a weight of 0.34kg
