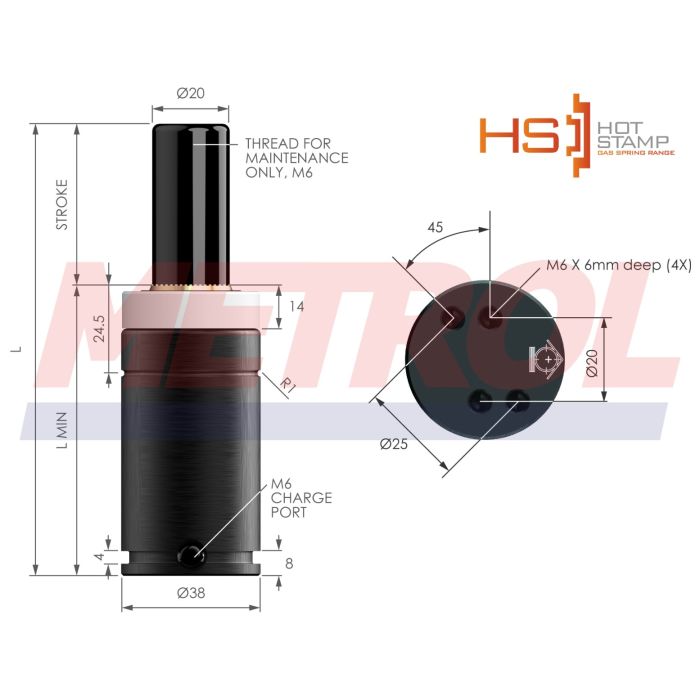

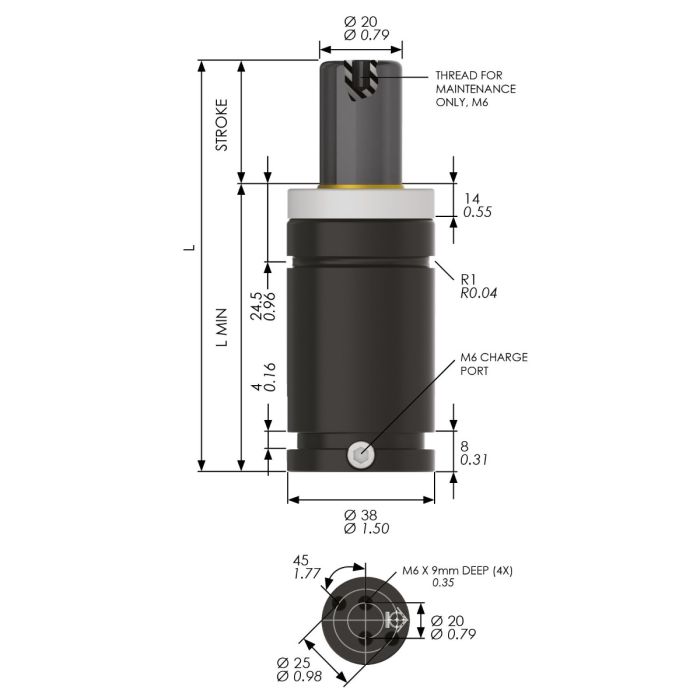

HS-EX0500-100Nitrogen Gas Spring, 470daN Force
SKU
HSEX0500-100
| Body Dia. (mm) | 38 |
|---|---|
| Piston Dia. (mm) | 20 |
| Stroke (mm) | 100 |
| L Min (mm) | 142 |
| Full Length (mm) | 242 |
| Mounting Options | End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 9 |
| Initial Force (N) | 4700 |
| Max Force (N) | 7100 |
| Certification | PED 2014/68/EU |
P.O.A
Contact us for more information
All prices exclude VAT
