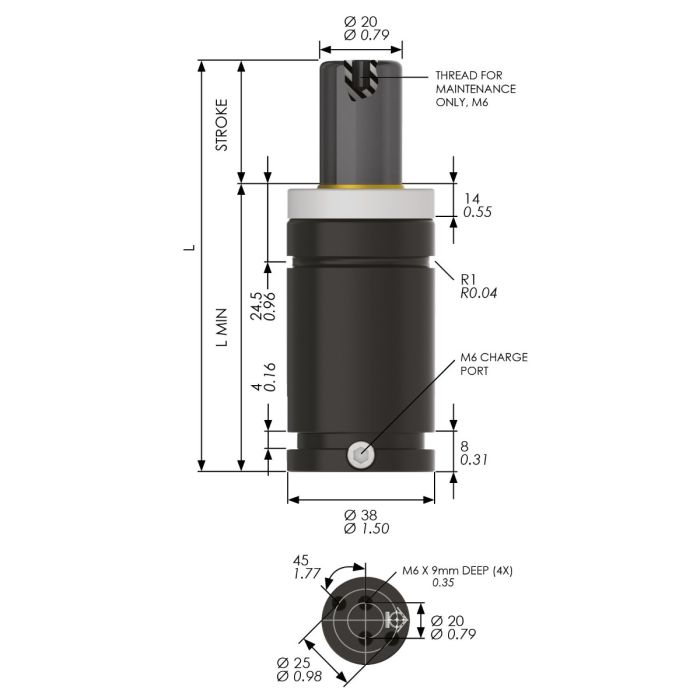

HS-EX0500-125Nitrogen Gas Spring, 470daN Force
SKU
HSEX0500-125
| Body Dia. (mm) | 38 |
|---|---|
| Piston Dia. (mm) | 20 |
| Stroke (mm) | 125 |
| L Min (mm) | 167 |
| Full Length (mm) | 292 |
| Mounting Options | End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 9 |
| Initial Force (N) | 4700 |
| Max Force (N) | 7100 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX0500-125 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 710daN and a weight of 0.79kg
-
Product codeProduct DescriptionStock Status
-
HSEX0500-125HS-EX0500-125Nitrogen Gas Spring, 470daN ForceChat or Contact us
