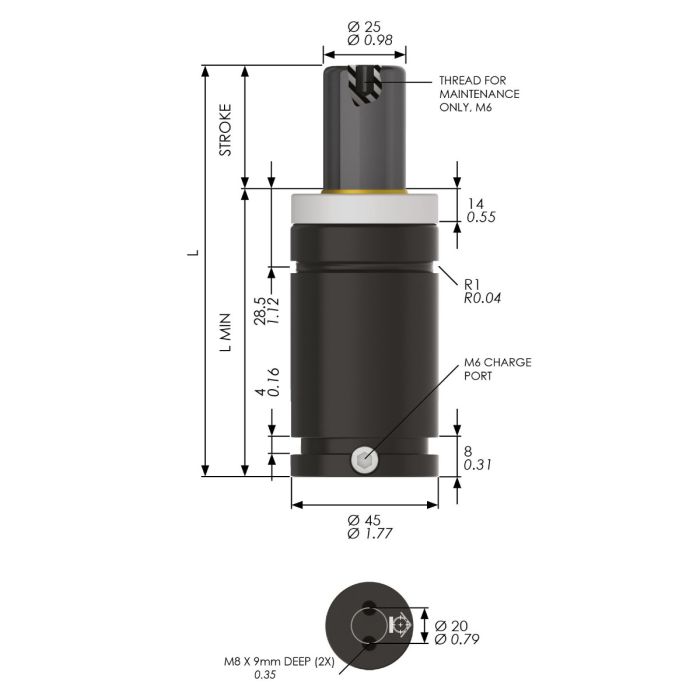

HS-EX0750-038Nitrogen Gas Spring, 740daN Force
SKU
HSEX0750-038
| Body Dia. (mm) | 45 |
|---|---|
| Piston Dia. (mm) | 25 |
| Stroke (mm) | 38 |
| L Min (mm) | 82 |
| Full Length (mm) | 120 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 9 |
| Initial Force (N) | 7400 |
| Max Force (N) | 11800 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX0750-038 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 1180daN and a weight of 0.61kg
