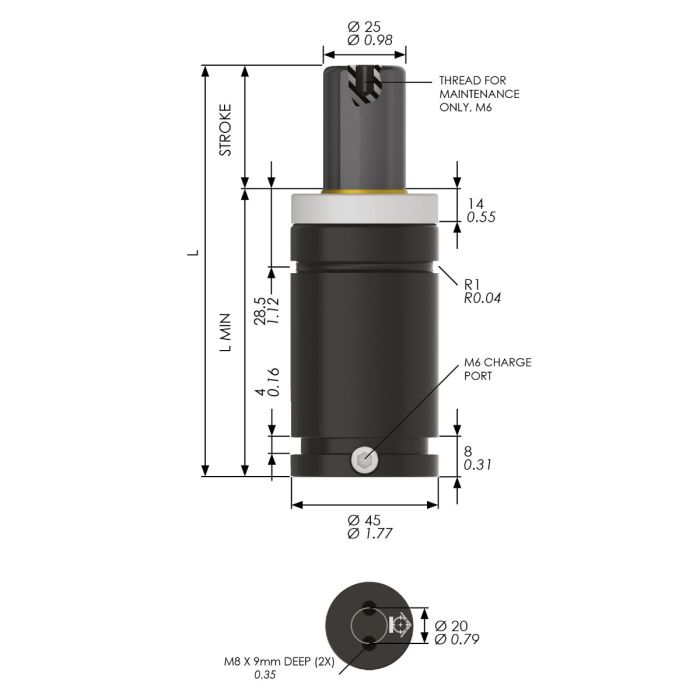

HS-EX0750-125 Nitrogen Gas Spring, 740daN Force
SKU
HSEX0750-125
| Body Dia. (mm) | 45 |
|---|---|
| Piston Dia. (mm) | 25 |
| Stroke (mm) | 125 |
| L Min (mm) | 169 |
| Full Length (mm) | 294 |
| Mounting Options | End Support, Front Flange, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 9 |
| Initial Force (N) | 7400 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX0750-125 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 1190daN and a weight of 1.14kg
-
Product codeProduct DescriptionStock Status
-
HSEX0750-125HS-EX0750-125 Nitrogen Gas Spring, 740daN ForceChat or Contact us
