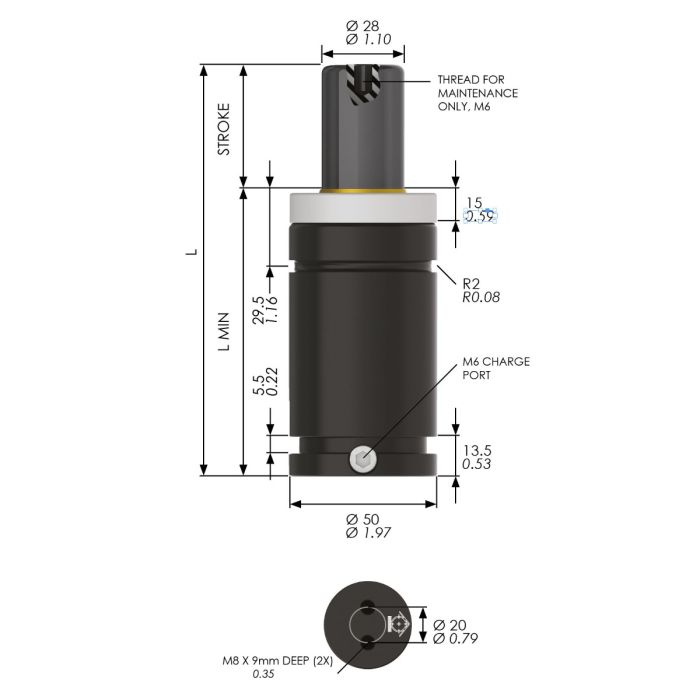

HS-EX1000-050 Nitrogen Gas Spring, 920daN Force
SKU
HSEX1000-050
| Body Dia. (mm) | 50 |
|---|---|
| Piston Dia. (mm) | 28 |
| Stroke (mm) | 50 |
| L Min (mm) | 100 |
| Full Length (mm) | 151 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 9 |
| Initial Force (N) | 9200 |
| Max Force (N) | 14600 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX1000-050 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 1460daN and a weight of 0.89kg
