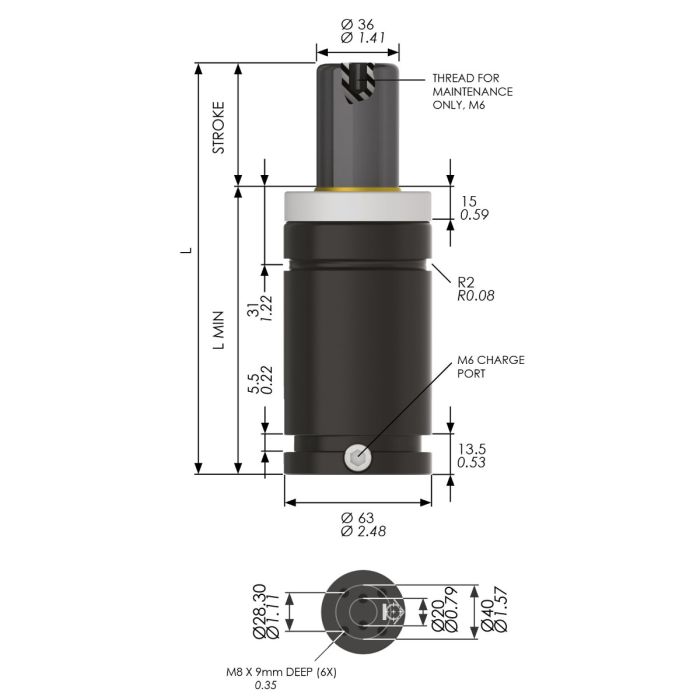

HS-EX1500-100 Nitrogen Gas Spring, 1500daN Force
SKU
HSEX1500-100
| Body Dia. (mm) | 63 |
|---|---|
| Piston Dia. (mm) | 36 |
| Stroke (mm) | 100 |
| L Min (mm) | 156 |
| Full Length (mm) | 256 |
| Mounting Options | Base Plate, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 9 |
| Initial Force (N) | 15000 |
| Max Force (N) | 24300 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX1500-100 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 2430daN and a weight of 1.92kg
