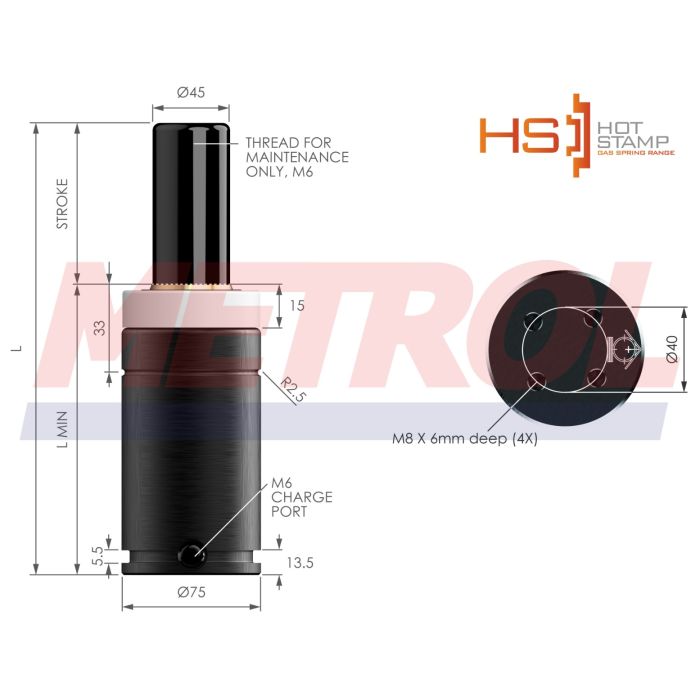

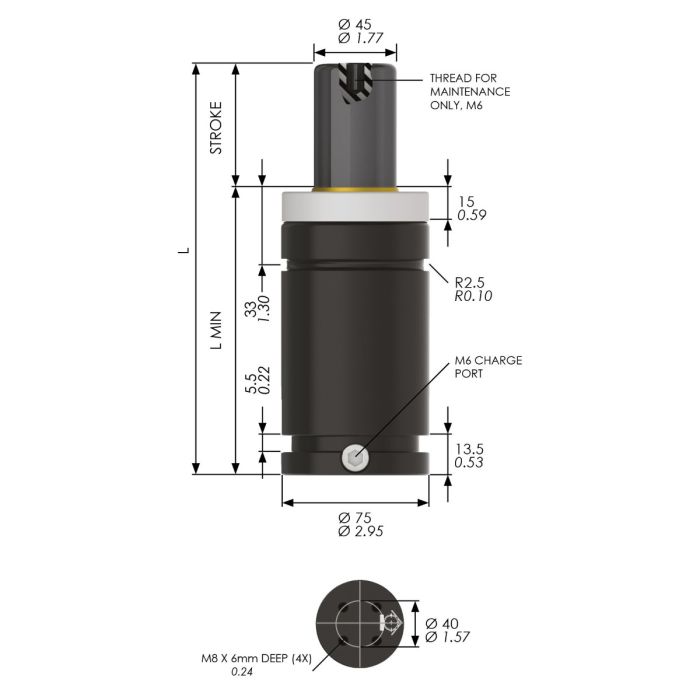

HS-EX2400-038 Nitrogen Gas Spring, 2400daN Force
SKU
HSEX2400-038
| Body Dia. (mm) | 75 |
|---|---|
| Piston Dia. (mm) | 45 |
| Stroke (mm) | 38 |
| L Min (mm) | 95 |
| Full Length (mm) | 133 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6 |
| Initial Force (N) | 24000 |
| Max Force (N) | 38400 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX2400-038 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 3840daN and a weight of 1.97kg
