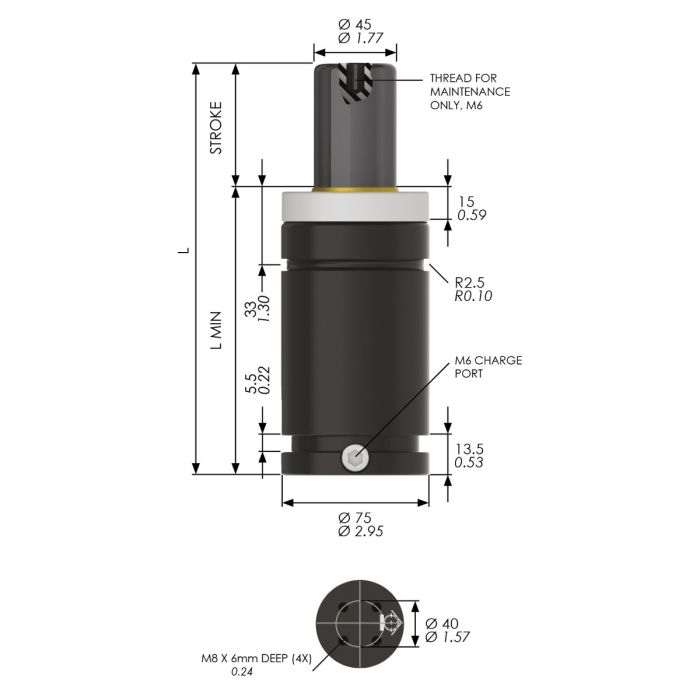

HS-EX2400-080 Nitrogen Gas Spring, 2400daN Force
SKU
HSEX2400-080
| Body Dia. (mm) | 75 |
|---|---|
| Piston Dia. (mm) | 45 |
| Stroke (mm) | 80 |
| L Min (mm) | 137 |
| Full Length (mm) | 217 |
| Mounting Options | End Support, Front Flange, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6 |
| Initial Force (N) | 24000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX2400-080 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 3920daN and a weight of 2.73kg
-
Product codeProduct DescriptionStock Status
-
HSEX2400-080HS-EX2400-080 Nitrogen Gas Spring, 2400daN ForceChat or Contact us
