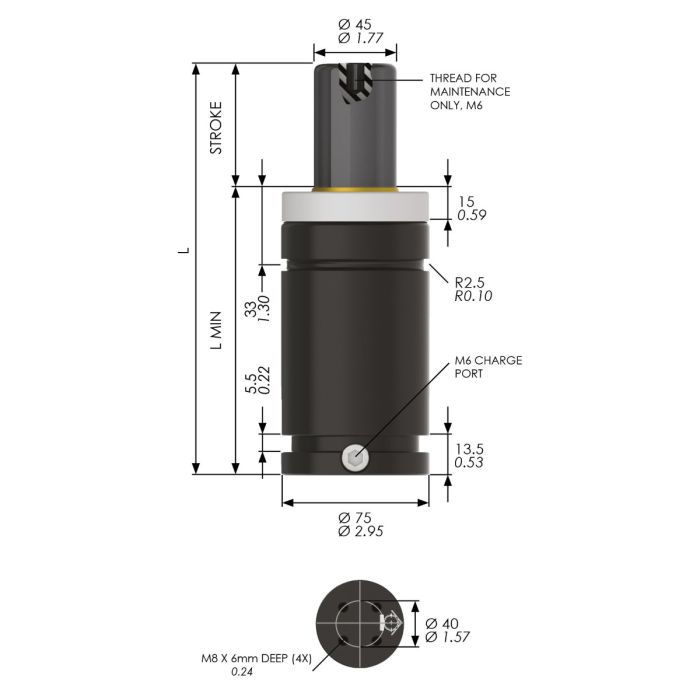

HS-EX2400-100 Nitrogen Gas Spring, 2400daN Force
SKU
HSEX2400-100
| Body Dia. (mm) | 75 |
|---|---|
| Piston Dia. (mm) | 45 |
| Stroke (mm) | 100 |
| L Min (mm) | 157 |
| Full Length (mm) | 257 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | M6 |
| Tapped Hole Depth (mm) | 6 |
| Initial Force (N) | 24000 |
| Max Force (N) | 39300 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX2400-100 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 3930daN and a weight of 3.07kg
