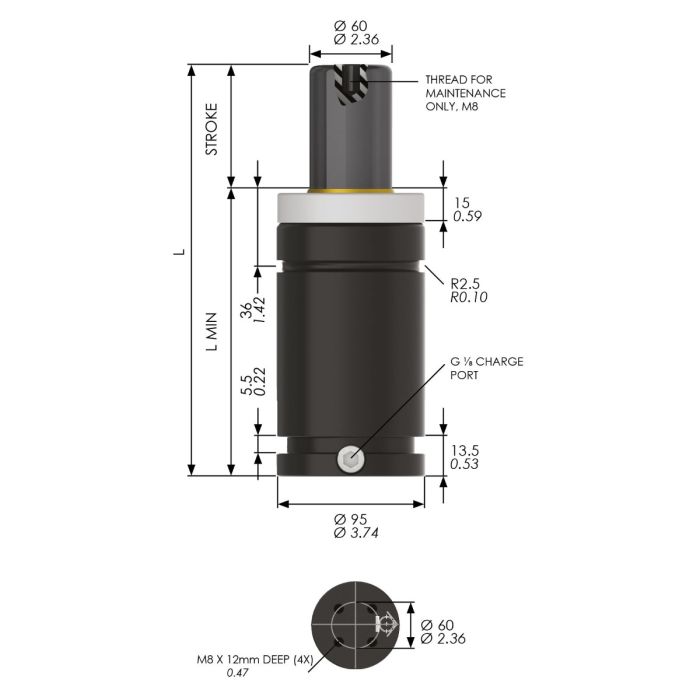

HS-EX4200-080 Nitrogen Gas Spring, 4200daN Force
SKU
HSEX4200-080
| Body Dia. (mm) | 95 |
|---|---|
| Piston Dia. (mm) | 60 |
| Stroke (mm) | 80 |
| L Min (mm) | 150 |
| Full Length (mm) | 230 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 12 |
| Initial Force (N) | 42000 |
| Max Force (N) | 68600 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX4200-080 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 6860daN and a weight of 4.85kg
