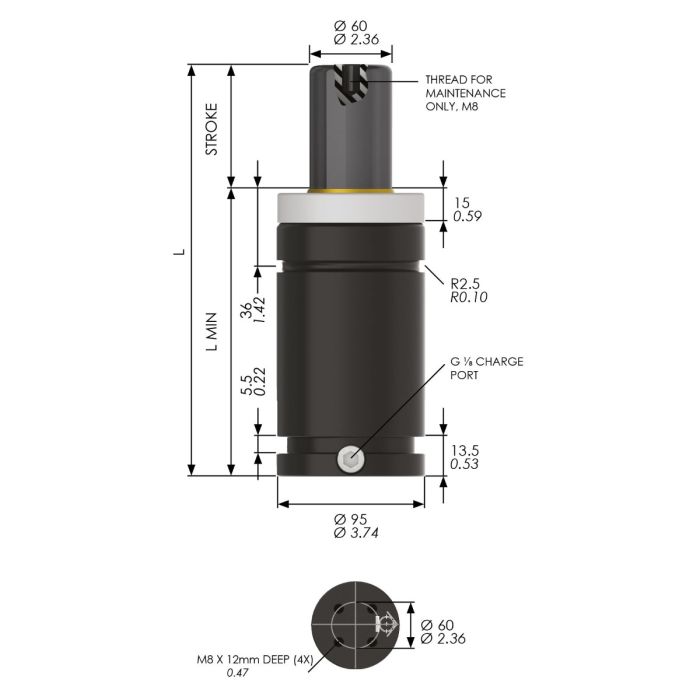

HS-EX4200-100 Nitrogen Gas Spring, 4200daN Force
SKU
HSEX4200-100
| Body Dia. (mm) | 95 |
|---|---|
| Piston Dia. (mm) | 60 |
| Stroke (mm) | 100 |
| L Min (mm) | 170 |
| Full Length (mm) | 270 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 12 |
| Initial Force (N) | 42000 |
| Max Force (N) | 69100 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX4200-100 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 6910daN and a weight of 5.37kg
