HS-EX6600-125 Nitrogen Gas Spring, 6630daN Force
SKU
HSEX6600-125

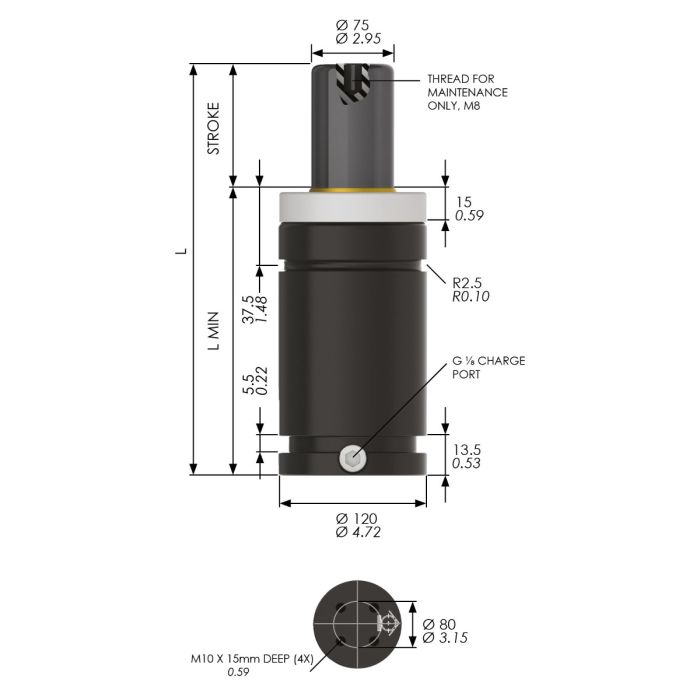

| Body Dia. (mm) | 120 |
|---|---|
| Piston Dia. (mm) | 75 |
| Stroke (mm) | 125 |
| L Min (mm) | 205 |
| Full Length (mm) | 330 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 66300 |
| Max Force (N) | 106500 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX6600-125 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 10650daN and a weight of 10.45kg
