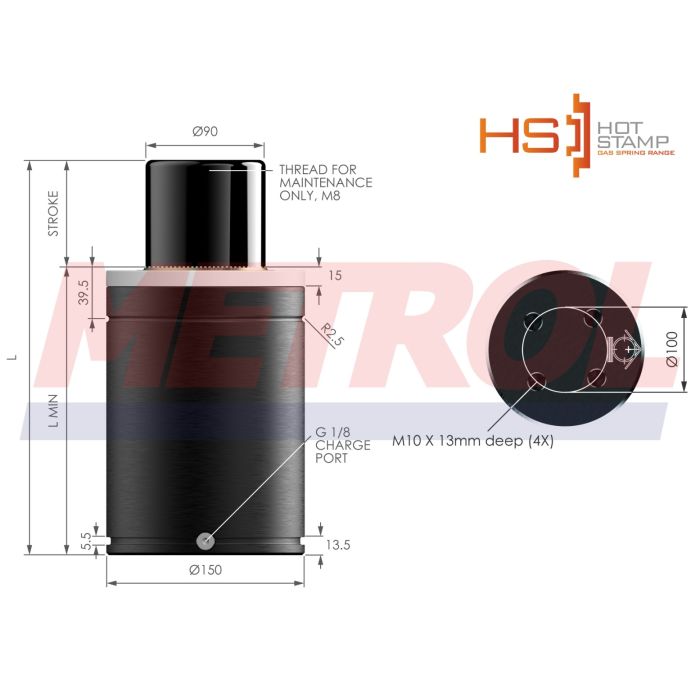

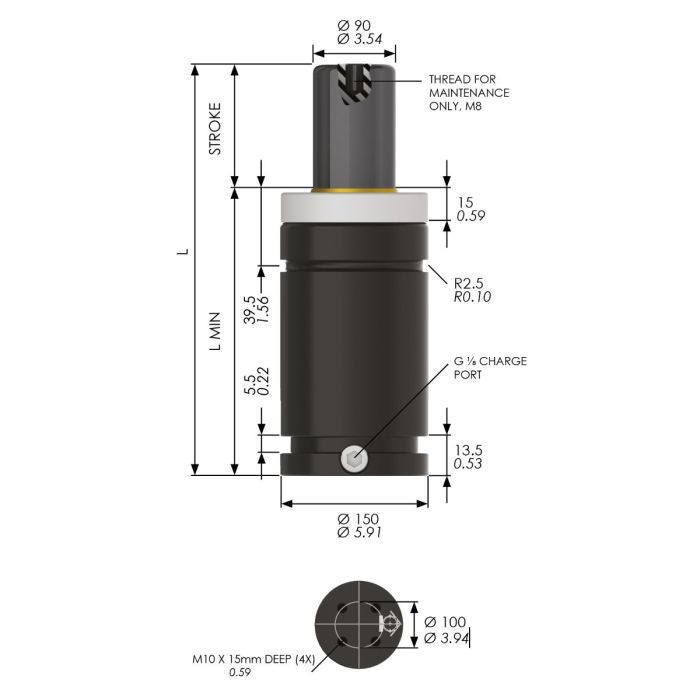

HS-EX9500-063 Nitrogen Gas Spring, 9500daN Force
SKU
HSEX9500-063
| Body Dia. (mm) | 150 |
|---|---|
| Piston Dia. (mm) | 90 |
| Stroke (mm) | 63 |
| L Min (mm) | 153 |
| Full Length (mm) | 216 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 95000 |
| Max Force (N) | 148000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX9500-063 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 14800daN and a weight of 12.97kg
