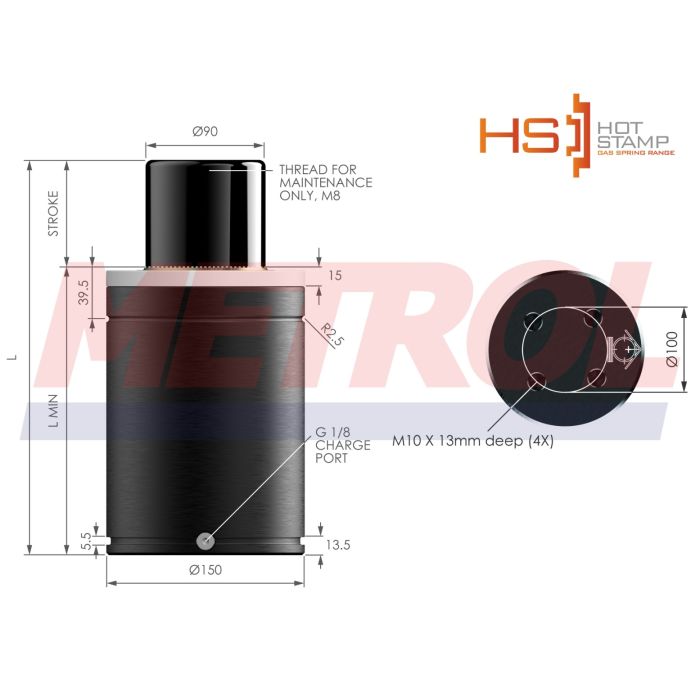

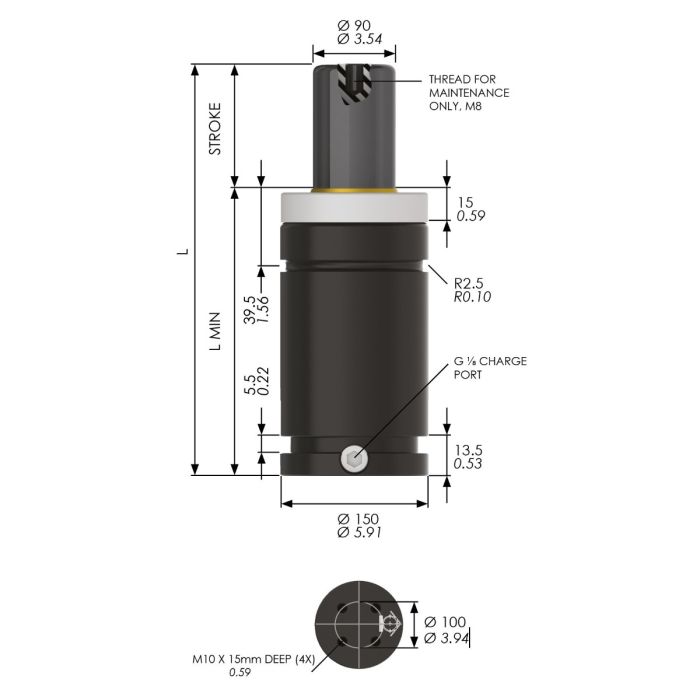

HS-EX9500-080 Nitrogen Gas Spring, 9500daN Force
SKU
HSEX9500-080
| Body Dia. (mm) | 150 |
|---|---|
| Piston Dia. (mm) | 90 |
| Stroke (mm) | 80 |
| L Min (mm) | 170 |
| Full Length (mm) | 250 |
| Mounting Options | Base Plate, End Support, Front Flange, Tapped Hole, Square Flange, Square Front Flange |
| Charge Port | G1/8 |
| Tapped Hole Depth (mm) | 15 |
| Initial Force (N) | 95000 |
| Max Force (N) | 150000 |
| Certification | PED 2014/68/EU |
Product Enquiry
The HS-EX9500-080 is a powerful compact rod sealed gas spring for hot stamping applications. It features a maximum spring force of 15000daN and a weight of 14.14kg
